Dahua Motor Grader
Description
DAHUA BRAND
Description
Main Specifications

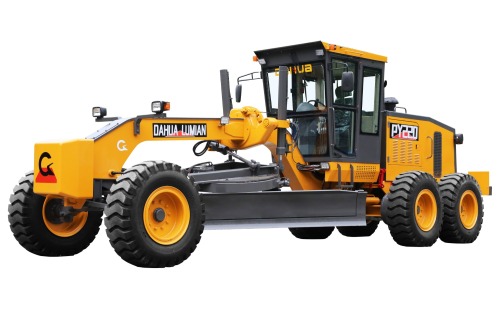

| Model | Dahua Articulated Grader PY220 |
| Engine Model | SHANGCHAI SC9DK220G3 |
| Rated power | 170kw |
| Blade cutting force | 7100/15648kg/lb |
| Total Weight | 17000KG |
| Front axle load | 5820kg |
| Rear axle load | 11080kg |
| Hydraulic system pressure | 16Mpa |
| Overall dimension(standard) | 8750X2790X3340mm |
| Warranty | One year warranty |
Equipment Highlights
Articulated graders PY220 are mainly used for large-scale ground leveling, digging trenches, scraping slopes, bulldozing, loosening soil and snow removal on roads, airports, farmland and other large areas.
- 1. Vertical inline, water-cooling, 4-stroke, turbo-charged central-cooling, high-pressure common-rail, Shangchai diesel engine
- 2. (Liuzhou)ZF6WG200 transmission with electro-hydraulic control,power shift.
- 3. Completely sealed, low-noise, ROPS/FOPS cabin with standard configuartion of environment-friengly hot & cool A/C, MP3 player.
- 4. Open hydraulic system(Husco control valve), adjustable blade control system.
- 5. The machine frame with completely sealed box structure could be installed with various working devices.
- 6. Single-lever Joy stick could control the speed swiftly and sensitively.
- 7. Heavy-loading "NO-SPIN "(anti-slipping) differential with automatic locking/releasing function.
- 2. (Liuzhou)ZF6WG200 transmission with electro-hydraulic control,power shift.
- 3. Completely sealed, low-noise, ROPS/FOPS cabin with standard configuartion of environment-friengly hot & cool A/C, MP3 player.
- 4. Open hydraulic system(Husco control valve), adjustable blade control system.
- 5. The machine frame with completely sealed box structure could be installed with various working devices.
- 6. Single-lever Joy stick could control the speed swiftly and sensitively.
- 7. Heavy-loading "NO-SPIN "(anti-slipping) differential with automatic locking/releasing function.
DAHUA BRAND
Chengdu Dahua Road Machinery Co., Ltd. is an enterprise specializing in the development and production of graders, road rollers and paver. Wenjiang. The company covers an area of more than 50,000 square meters, has a fixed production plant of more than 20,000 square meters, more than 100 sets of various professional equipment, and has an annual production capacity of 400 motor graders, 200 road rollers and 100 pavers. The company has a professional development and design technical department, which can complete the development and design of 100--280 horsepower graders, 22T-32T road rollers and 2.5--12 meters paver.
In recent years, through the introduction and absorption of foreign advanced technology and painstaking research and development, we have developed our own motor graders, road rollers and paver machines that are at the leading domestic level. Since the advent of the first PY185 grader in 1997, Dahua has successively developed heavy-duty series (articulated) graders such as PY185A, PY200TF, MG1125, MG1217A, MG1320E, DH170; YZD22, YZD26 series of road rollers; and CLT120, CLT90 and other series of paver, the products are widely used in the construction of high-grade highways, high-speed railways, and airports in China, and the products have been recognized and praised by users.
The company's main products meet the needs of various working conditions with its reasonable configuration and strong traction. Now the products are sold to all provinces, cities and autonomous regions of the country, and have been exported to Australia, Russia, Kazakhstan, Turkmenistan, Iran, India, Congo, Algeria, Mongolia, Kenya, South Africa, Egypt, Tunisia, Brazil, Mexico, etc. country and region.
The company's main products meet the needs of various working conditions with its reasonable configuration and strong traction. Now the products are sold to all provinces, cities and autonomous regions of the country, and have been exported to Australia, Russia, Kazakhstan, Turkmenistan, Iran, India, Congo, Algeria, Mongolia, Kenya, South Africa, Egypt, Tunisia, Brazil, Mexico, etc. country and region.
