Cone Crusher
| Model | Moving cone diameter(mm) | Input Size(mm) | Output Size(mm) | Capacity(t/h) | Power(kW) | Overall Dimension(mm) |
| HGT4265 | 1650 | 1065 | 140-175 | 2015-2875 | 400 | 3940×4170×6900 |
| HGT5065 | 1650 | 1270 | 150-175 | 2400-2940 | 400 | 4460×4430×7610 |
| HGT5475 | 1905 | 1370 | 150-200 | 2890-3490 | 450 | 4930×4925×8410 |
| HGT6275 | 1905 | 1575 | 150-200 | 2895-4335 | 450 | 5580×5250×9090 |
| HGT6089 | 2260 | 1525 | 165-230 | 4200-5810 | 630 | 5590×5445×10470 |
| HGT60110 | 2795 | 1525 | 175-250 | 5540-8895 | 1250 | 6200×5940×11390 |

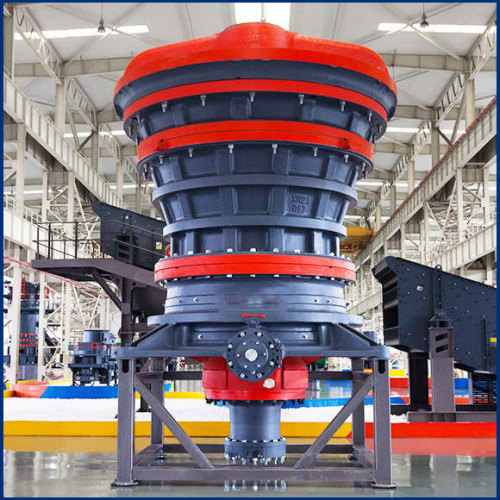

HGT Gyratory Crusher Working Principle
HGT Gyratory Crusher is mainly composed of the beam, frame, moving cone, eccentric sleeve, transmission part and hydraulic cylinder. Driven by the motor, the horizontal shaft starts to rotate which then further makes the eccentric sleeve rotate under the assistance of gear. Next, the eccentric sleeve drives the moving cone to swing in a circular motion to squeeze and crush rocks continuously. Adjusting the hydraulic cylinder on the bottom of moving cone to let the cone move up and down can make the adjustment of the discharge port's opening easier, and, therefore, the granularity of final products can get better control. Besides, the hydraulic cylinder has a protection function when iron blocks intrude. If there are unbreakable materials such as iron blocks entering the crushing cavity, the hydraulic cylinder will drop the moving cone to release iron blocks while the crushing process doesn't stop.
- 2. Able to Work Continuously under High Intensity
- 3. Simpler Operation and Maintenance
- 4. Efficient and Intelligent Production
- 5. Strong Adaptability, Applicable for Severe Crushing Conditions
- 6. Sufficient Supply of Spare Parts, Worry-Free Operation
