Cone Crusher
Description
Description
Stone Crusher Specifications
| Model | Cavities | Maximum feeding size (mm) | Minimum discharging size (mm) | Capacities (t/h) | Maximum installed power (kW) | Overall dimension (mm) |
| HST100 | S1(Extra Coarse) | 240 | 22 | 85-170 | 90 | 1550×1575×2545 |
| S2(Medium Coarse) | 200 | 19 | 70-130 | |||
| H1(Fine) | 135 | 10 | 45-115 | 1550×1575×1965 | ||
| H2(Medium Fine) | 65 | 8 | 35-80 | |||
| H3(Extra Fine) | 35 | 4 | 27-60 | |||
| HST160 | S1(Extra Coarse) | 360 | 25 | 120-345 | 160 | 1875×1920×3195 |
| S2(Medium Coarse) | 300 | 22 | 105-305 | |||
| S3(Coarse) | 235 | 19 | 90-275 | |||
| H1(Fine) | 185 | 13 | 66-210 | 1875×1920×2400 | ||
| H2(Medium Fine) | 90 | 10 | 65-165 | |||
| H3(Extra Fine) | 50 | 6 | 48-105 | |||
| HST250 | S1(Extra Coarse) | 450 | 35 | 255-605 | 250 | 2100×2320×4096 |
| S2(Medium Coarse) | 400 | 29 | 215-515 | |||
| S3(Coarse) | 300 | 25 | 190-490 | |||
| H1(Fine) | 215 | 16 | 110-395 | 2100×2320×2780 | ||
| H2(Medium Fine) | 110 | 13 | 115-340 | |||
| H3(Extra Fine) | 70 | 8 | 90-255 | |||
| HST315 | S1(Extra Coarse) | 560 | 41 | 335-1050 | 315 | 2380×2735×4630 |
| S2(Medium Coarse) | 500 | 38 | 305-895 | |||
| H1(Fine) | 275 | 16 | 170-665 | 2380×2735×3265 | ||
| H2(Medium Fine) | 135 | 16 | 190-505 | |||
| H3(Extra Fine) | 65 | 13 | 205-320 | |||
| HST450 | S1(Extra Coarse) | 560 | 54 | 500-1300 | 450 | 2906×3187×4582 |
| S2(Medium Coarse) | 465 | 51 | 450-1200 | |||
| HST560 | H1(Fine) | 300 | 22 | 430-1515 | 560 | 3780×2341×4531 |
| H2(Medium Fine) | 155 | 19 | 380-1375 | |||
| H3(Extra Fine) | 80 | 10 | 270-775 | |||
| HST750 | H1(Fine) | 370 | 25 | 460-2130 | 750 | 3100×3623×5305 |
| H2(Medium Fine) | 195 | 22 | 525-1605 | |||
| H3(Extra Fine) | 85 | 10 | 350-885 |
Stone Crusher Highlights

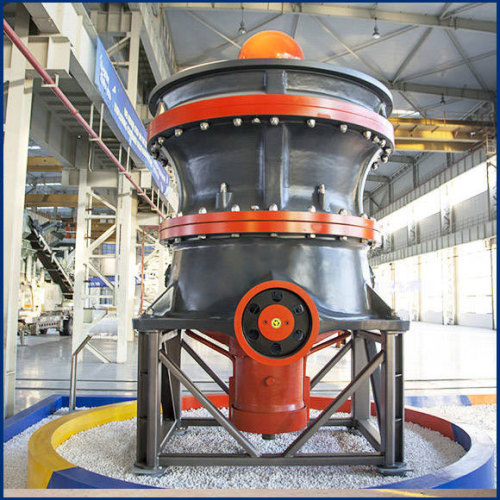

HST Single Cylinder Hydraulic Cone Crusher Working Principle
When a HST Single Cylinder Hydraulic Cone Crusher works, driven by the motor, the transmission shaft rotates under the action of belt pulley and triangular belt. Next, the transmission shaft drives the eccentric sleeve to make it rotate around the axis. Meanwhile, the eccentric sleeve forces the movable cone to do pendular movement. This movement makes the movable cone and fixed cone sometimes close to, sometimes far away from the rolling wall. Materials are continuously shocked, squeezed and crushed in the crushing cavity between the crushing wall and the rolling wall. Finally, materials are discharged out of the machine when their fineness reaches the discharging standard.
- 1. High Production Efficiency, Strong Holding Capacity
- 2. Fully Automatic Control Covering Whole Production Process
- 3. Easier for Maintenance, More Effective for Cost Savings
- 4. Multiple Cavity Types Meet Various Production Needs
- 5. Digitalized Processing, Higher Precision
- 6. Sufficient Supply of Spare Parts, Worry-free Operation
- 2. Fully Automatic Control Covering Whole Production Process
- 3. Easier for Maintenance, More Effective for Cost Savings
- 4. Multiple Cavity Types Meet Various Production Needs
- 5. Digitalized Processing, Higher Precision
- 6. Sufficient Supply of Spare Parts, Worry-free Operation
