SHANTUI Bulldozer

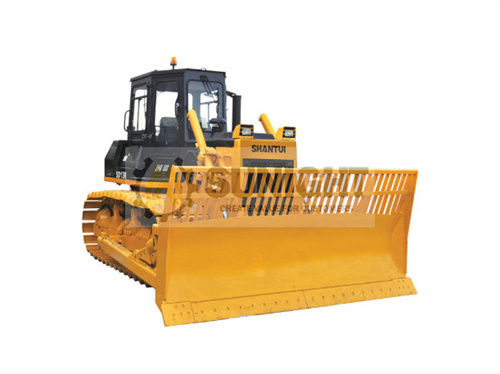

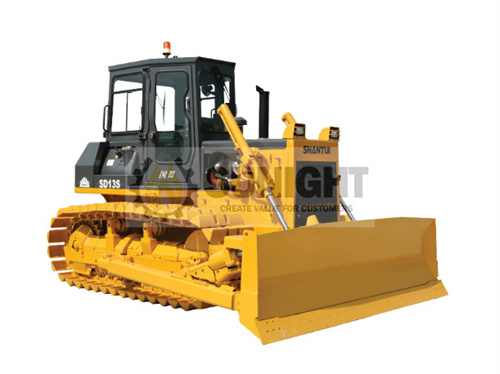

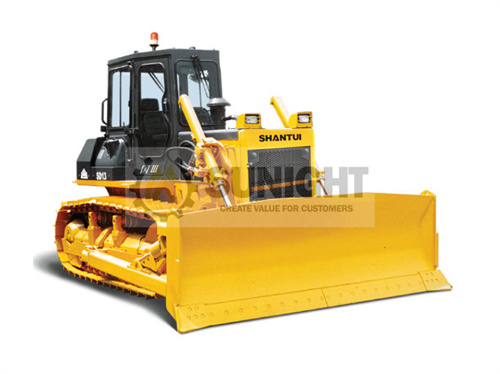

Shantui SD13 Bulldozer

SD13 series bulldozers are mainly used for earthwork pushing, leveling and other bulk material stacking operations in small load occasions on roads and railways. Because of its flexibility, lightness, reliability and durability, SD13 bulldozer is widely used in disaster relief activities such as earthquakes and mudslides, providing great help for personnel rescue. SD13 bulldozer is an indispensable mechanical equipment for construction and water conservancy construction.

ENGINE POWER: 105kW/1900rpm
OVERALL WEIGHT: 13,700kg (Standard)
ENGINE MODEL: SC8D143G2B1/SC8DK
Description SHANTUI BRAND
Description
Main Specifications
Model SHANTUI Bulldozer SD13 (Standard version)
Engine Model SC8D143G2B1(China-II)/SC8DK(China-III)
Operating weight 13700Kg
Ground pressure (kPa) 53.8kPa
Rated power/rated speed (kW/rpm) 105/1900
Overall dimensions of machine (mm) 4492*3185*2950
Forward speed (km/h) F1:0-3.2 F2:0-5.9 F3:0-9.8
Reversing speed (km/h) R1:0-3.9 R2:0-7.1 R3:0-11.9
Center distance of track (mm) 1880
Width of track shoes (mm) 460
Ground length(mm) 2365
Fuel tank (L) 300
Blade type Straight tilting blade
Digging depth (mm) 590
Ripper type Three-shank ripper
Ripping depth (mm) 567
Warranty One year warranty
Equipment Highlights

SD13 series bulldozers are mainly used for earthwork pushing, leveling and other bulk material stacking operations in small load occasions on roads and railways. Because of its flexibility, lightness, reliability and durability, Shantui SD13 bulldozer is widely used in disaster relief activities such as earthquakes and mudslides, providing great help for personnel rescue. SD13 bulldozer is an indispensable mechanical equipment for construction and water conservancy construction.

- 1. Power System: Strong power, high efficiency and energy-saving, and low maintenance cost. The rated power reaches 105kW, featuring high torque reserve coefficient. The improved air filter and intake and exhaust system guarantee up to 99% filtration accuracy to effectively prolong the engine life.
- 2. Drive system: The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency. Shantui's self-made drive system features stable performance and reliable quality and has been long proved by the market.
- 3. Driving/Riding Environment: The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.
- 4. Working adaptability: Shantui's mature product chassis system is applicable to diversified severe working conditions, featuring high stability and reliability.
- 5. Easy maintenances: The structural parts inherit the excellent quality of Shantui's mature products; The electric harnesses adopt corrugated pipes for protection and deconcentrators for branching, featuring high protection grade.


SHANTUI BRAND

SHANTUI FOCUSES ON TECHNICAL INNOVATION AND SUSTAINABLE DEVELOPMENT ALL THE TIME. Shantui Construction Machinery Co., Ltd. (hereinafter referred to as “Shantui”) was formerly established as Yantai Machinery Factory in 1952, and was re-constructed with Jining Machinery Factory, Jining General Machinery Factory and Jining Power Machinery in 1980 as Shandong Bulldozer.

It is a state-owned joint-stock listed company, headquartered in Jining City, Shandong Province, with a total area of more than 2,700mu.Main products include more than ten categories of main engine products such as bulldozer series, road machinery series, concrete machinery series, loader series and excavator series etc., as well as accessories for construction machinery, such as chassis part, drive part and structural part etc. At present, its annual production capacity exceeds 10,000 units of bulldozers, 6,000 units of road machineries, 500 units of concrete mixing plants, 150,000 track assemblies, 1,000,000 wheels for construction machinery, 80,000 units of torque converters and 20,000 transmissions, where the bulldozers have ranked first in global production and sales for 16 consecutive years. Shantui is one of the top 50 manufacturers of construction machinery in the world and one of China’s top 500 manufacturers.

Shantui owns a sound sales system and complete sales service network, and its products are sold overseas in more than 160 countries and territories. At present, there are 27 Shantui monopolized stores, 53 agencies and 320 marketing points within the boundary of China. Shantui has more than 100 overseas agents/dealers, as well as more than 10 overseas subsidiaries in the South Africa,United Arab Emirates, Brazil and the United States. In the aspect of service mode, Shantui aims to “build an enterprise that pays most attention to customers’ individual needs and services”, and provides customers with integrated construction solutions; and the humanized and intelligent top-quality service help Shantui win customers’ praise, thus enhancing brand value of the enterprise.

In recent years, Shantui insists on promoting sustainable development by scientific and technological innovation, and is committed to research in the fields of remote control, intelligent network connection and high-power products etc.for leading the industry forward.In 2019, the world’s first 5G remote-controlled high-power bulldozer was commercialized by us, and thus the level of 5G technology application and intelligent manufacturing was further enhanced; China’s highest-power bulldozer was successfully delivered to the customer, filling the technology gap of domestic high-power bulldozers and laying the foundation for the localization of high-power bulldozers.Meanwhile,we have obtained partial result sin the digital transformation, ourin telligent factory built via the 5G network is maturing, the self-designed intelligent production line and assembly testing equipment have been put into operation.

In the future, Shantui Construction Machinery Co., Ltd. will strive to build an international first-class brand of bulldozers, road machinery, loaders, excavators, and concrete machinery, become a leader in new energy and intelligent equipment, and a construction machinery manufacturer with core technology.
