XCMG Excavators
Description
XCMG BRAND
Description
Main Specifications

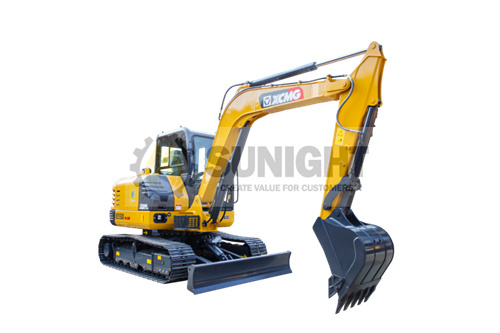

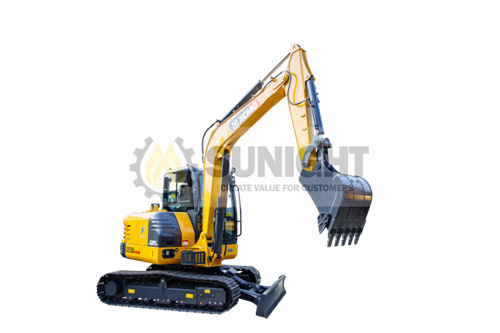

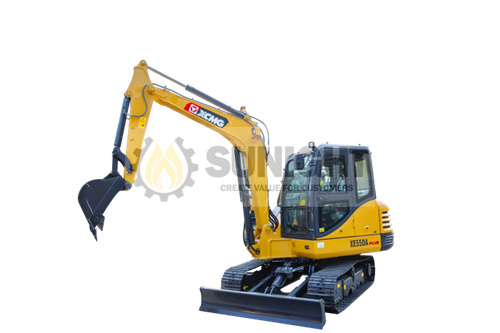

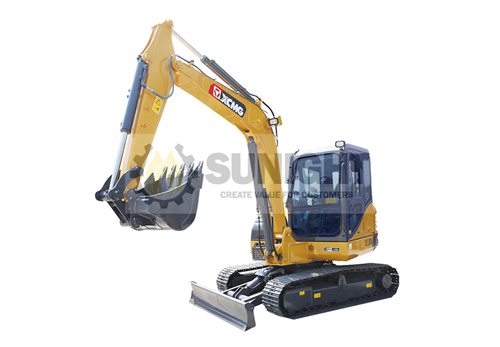

| Model | XCMG Small Crawler Excavator XE55DA |
| Engine Model | Kubota |
| Operating weight | 5750Kg |
| Bucket capacity | 0.21m³ |
| Rated power/speed | 35/2200kw/rpm |
| Maximum torque/speed | 171.5/1320N.m |
| Travel speed(H/L) | 3.6/2.2km/h |
| Swing speed | 10r/min |
| Displacement | 2.615L |
| Bucket digging force | 48.3kN |
| Arm digging force | 32.5kN |
| Warranty | One year warranty |
Equipment Highlights
The matching optimization of the hydraulic system and the engine reduces the fuel consumpiton by more than 6%. By increasing the displacement and pressure of the swing motor, the torque is increased by 15%, which makes the slope operation easier. The industry's first enclosed sunshade curtain for 6-ton cab, it can avoid direct sunlight and protect drivers from all directions.
- 1. The chassis is widened and lengthened, and the excavation stability is good;
- 2. Matching the "eight-ton" large-diameter main valve, the control is soft, the compound action is well coordinated, and the leveling performance is good;
- 3. The thermal equilibrium temperature is reduced by 6 degrees, and the high temperature adaptability and anti-pollution ability are enhanced;
- 4. The cab structure and seal are optimized to reduce indoor noise and operational fatigue, make the cab cleaner, and improve the cab texture;
- 5. The handle operation force is optimized to reduce work fatigue; The rotation control is optimized, and the hoisting operation is easier.
- 2. Matching the "eight-ton" large-diameter main valve, the control is soft, the compound action is well coordinated, and the leveling performance is good;
- 3. The thermal equilibrium temperature is reduced by 6 degrees, and the high temperature adaptability and anti-pollution ability are enhanced;
- 4. The cab structure and seal are optimized to reduce indoor noise and operational fatigue, make the cab cleaner, and improve the cab texture;
- 5. The handle operation force is optimized to reduce work fatigue; The rotation control is optimized, and the hoisting operation is easier.
XCMG BRAND
Xuzhou Construction Machinery Group Co., Ltd. (XCMG) was founded in 1943. Since then, XCMG has stood at the forefront of the Chinese construction machinery industry and developed into one of the domestic industry's largest, most influential, and most competitive enterprise groups with the most complete product varieties and series.
- TECHNOLOGICAL STRENGTH: XCMG is the 3rd largest construction machinery company in the world. It is ranked 65th in the list of China's Top 500 Companies, 44th in the list of China's Top 100 Manufacturing Enterprises, and 2nd in the list of China's Top 100 Machinery Manufacturers. XCMG is dedicated to its core value of "Taking Great Responsibilities, Acting With Great Morals, and Making Great Achievements" and its corporate spirit of being “Rigorous, Practical, Progressive, and Creative” in order to keep moving towards its ultimate goal of becoming a leading world-class enterprise capable of creating real value.
- GREEN TECHNOLOGY: As a leading enterprise in China's construction machinery industry, XCMG has transcended the traditional business philosophy of putting profit before all else in order to meet its economic and moral responsibilities by emphasizing its contributions to customers, employees, partners, the environment, and society, and dedicating itself to green manufacturing, green R&D, environmental protection, energy conservation, reducing emissions, and developing a circular economy, all of which exemplify the company's strong sense of social responsibility.
- Hybrid Technology: XCMG pooled its technological advantages to carry out in-depth studies on gasoline-electric hybrid engine systems and actively apply it to product R&D. This system converts pressure from the swing overflow and main pump overflow into electric energy, which is transmitted to the motor to provide auxiliary power.
- GREEN TECHNOLOGY: As a leading enterprise in China's construction machinery industry, XCMG has transcended the traditional business philosophy of putting profit before all else in order to meet its economic and moral responsibilities by emphasizing its contributions to customers, employees, partners, the environment, and society, and dedicating itself to green manufacturing, green R&D, environmental protection, energy conservation, reducing emissions, and developing a circular economy, all of which exemplify the company's strong sense of social responsibility.
- Hybrid Technology: XCMG pooled its technological advantages to carry out in-depth studies on gasoline-electric hybrid engine systems and actively apply it to product R&D. This system converts pressure from the swing overflow and main pump overflow into electric energy, which is transmitted to the motor to provide auxiliary power.
