Sany Truck Crane
Description
SANY BRAND
Description
Main Specifications

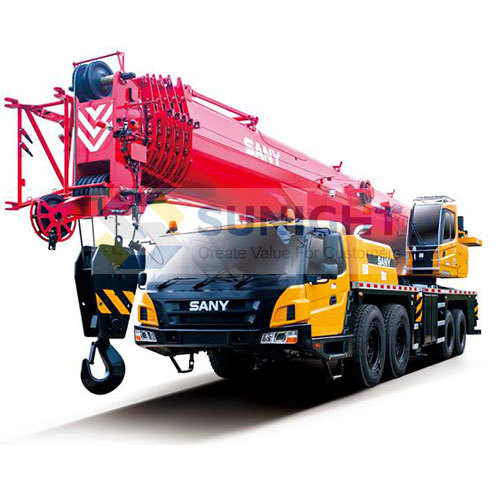

| STC1000T6 Truck Crane Operation | |
| Max Lifting Capacity | 100T |
| Max Lifting Height | 87m |
| Max Lifting Moment | 3557.5kN·m |
| Max Boom Length | 60m |
| Jib Length | 27m |
| Counter Weight | 30.2T |
| STC1000T6 Truck Crane Traveling | |
| Engine Model | DF Cummins ISLe375 30(Euro 3) |
| Max Traveling Speed | 80km/h |
| Wheel Formula | 8×4×4 |
| Max Gradeability | 45% |
| Available Districts | LHD area |
Truck Crane Highlights
SANY truck crane features high stability, driving flexibility, high lifting performance, simple structure, and high efficiency with maximum lifting capacity ranging from 25t to 160t. The adjustable hydraulic system and intelligent electric control system make the truck cranes in high efficiency and low fuel consumption.
Excellent performance
① Boom system: Oval shape large cross section boom 60m in full length, fixed jib 17.5m, optional 9.5m extension, leading in industry. Max. lifting moment of basic boom 3557.5kN·m, max. lifting moment of full extension boom 2254kN · m. Max. load 13.5t at full extension boom.
② Integrated remote control: The remote control panel integrating counterweight lifting, turntable slewing.
③ Operator’s cab: 20° tiltable operator's cab perfectly arranged with new interior decor, the new comfortable seat movable in a range of 150 mm and tiltable by 140°. Large size window and skylight increases visibility to secure clear view for load operation near or far away.
④ Control system: CAN BUS system: Controllers, displays, gauges, I/O modules, sensors, etc. are integrated in CAN Bus networking, fast-responsive. Fault diagnosis system: Operating device with smart controller, body with BCM module, accurately locating the fault point for convenient maintenance.
② Integrated remote control: The remote control panel integrating counterweight lifting, turntable slewing.
③ Operator’s cab: 20° tiltable operator's cab perfectly arranged with new interior decor, the new comfortable seat movable in a range of 150 mm and tiltable by 140°. Large size window and skylight increases visibility to secure clear view for load operation near or far away.
④ Control system: CAN BUS system: Controllers, displays, gauges, I/O modules, sensors, etc. are integrated in CAN Bus networking, fast-responsive. Fault diagnosis system: Operating device with smart controller, body with BCM module, accurately locating the fault point for convenient maintenance.
Power Train
① Engine: DF Cummins ISLe375 30 (inline six-cylinder supercharged diesel engine with watercooler and inter cooler, conforming to Euro III emission standard. Rated power: 275kW/2100rpm. Max. torque: 1550Nm/ 1400rpm. Fuel reservoir capacity: 450L.
② Braking system: Composed of drum brake, air chamber and ABS system, the braking performance is more reliable and efficient. Standard service brake for all axles, parking brake for axle 2/3/4/5.
③ Transmission: FAST manual transmission, 10 forward gears, 2 reversing gears, large speed ratio range, adaptable to slope climbing and high-speed traveling.
② Braking system: Composed of drum brake, air chamber and ABS system, the braking performance is more reliable and efficient. Standard service brake for all axles, parking brake for axle 2/3/4/5.
③ Transmission: FAST manual transmission, 10 forward gears, 2 reversing gears, large speed ratio range, adaptable to slope climbing and high-speed traveling.
Good quality
① Self-developed hydraulic valve functioning adjustment via load feedback, for better fine-tune performance.
② Adaptive to various tough road conditions.
③ Every manufacture process is monitored for sophisticated products.
② Adaptive to various tough road conditions.
③ Every manufacture process is monitored for sophisticated products.
GCP remote control
① China's first equipment remote monitor is developed by Sany.
② Operation conditions and data are collected, making long-distance troubleshooting and control possible.
③ This system enables online parts browsing and purchasing.
② Operation conditions and data are collected, making long-distance troubleshooting and control possible.
③ This system enables online parts browsing and purchasing.
