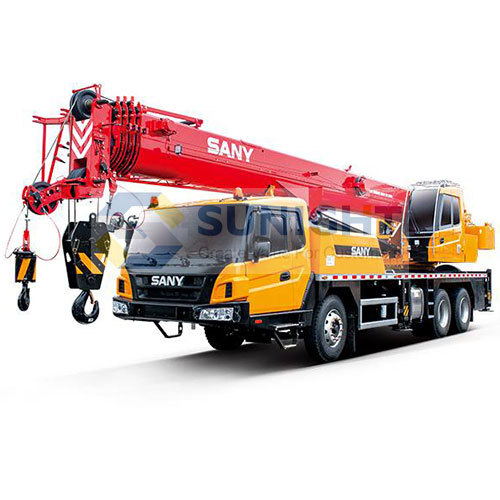

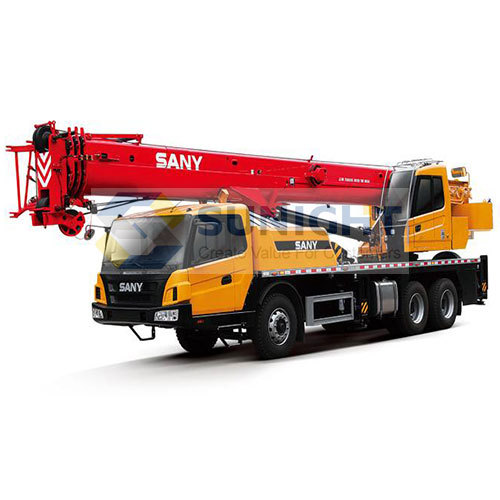

STC250 SANY Truck Crane

STC250 SANY Truck Crane with Max Lifting Capacity 25 T: STC250C4, STC250C4, STC250T5.

Model: STC250C4, STC250C4, STC250T5
Max Lifting Capacity: 25T
Max Lifting Height: 43.5m, 49.5m, 49m
Description SANY BRAND
Description
Main Specifications
STC250 Truck Crane Operation
Model STC250C4 STC250C5 STC250T5
Max Lifting Capacity 25T 25T 25T
Max Lifting Height 43.5m 49.5m 49m
Max Lifting Moment 1078kN·m 1088kN·m 1063kN·m
Max Boom Length 35m 41m 41m
Jib Length 8m 8m 8m
Counter Weight 30.8T 31.9T 5.6T
STC250 Truck Crane Traveling
Engine Model Euro III Euro III ISLe290 30 (Euro 3)
Max Traveling Speed 85km/h 85km/h 85km/h
Wheel Formula 6×4 6×4 6×4×2
Max Gradeability 41% 41% 42%
Available Districts LHD countries LHD/RHD countries RHD countries
Truck Crane Highlights

sany truck crane

SANY truck crane features high stability, driving flexibility, high lifting performance, simple structure, and high efficiency with maximum lifting capacity ranging from 25t to 160t. The adjustable hydraulic system and intelligent electric control system make the truck cranes in high efficiency and low fuel consumption.

STC250C4 SANY TRUCK CRANE

① Strong lifting capacity: Full-extension boom 35m, max. lifting height of boom 35.5m. U-shape large cross section boom, max. lifting moment 1078kN.m. The lifting performance of middle & long boom is 20% higher among same class in the industry
② Variable pump electro-hydraulic control hydraulic system: The electro-hydraulic control system realizes effective flow distribution, featuring quick response to combined motions and small impact shock, energy saving and environmentally friendly.
③ High performance chassis: WEICHAI P7.300 engine, FAST 9-speed transmission, rubber suspension. Max. gradeability 41%, powerful performance.
④ Smart control system: CAN BUS system: Controllers, displays, meters, I/O modules, sensors, etc. are integrated in CAN Bus networking, fast-responsive. Fault diagnosis system: Operating device with smart controller, body with BCM module, accurately locating the fault point, making the maintenance convenient.

STC250C5 SANY TRUCK CRANE

① Strong lifting capacity: Full-extension boom 41m, max. lifting height of boom 41.5m. U-shape large cross section boom, max. lifting moment 1088kN.m. The lifting performance of middle & long boom is 20% higher among same class in the industry.
② Variable pump electro-hydraulic control hydraulic system: The electro-hydraulic control system realizes effective flow distribution, featuring quick response to combined motions and small impact shock, energy saving and environmentally friendly. Precise control: Excellent inching performance, min. stable speed of single rope is 1.2m/min and min. stable speed of slewing is 0.1°/ s, realizing precise lifting of mm level.
③ High performance chassis: WEICHAI P7.300 engine, FAST 9-speed transmission, rubber suspension. Max. gradeability 41%, powerful performance.
④ Smart control system: CAN BUS system: Controllers, displays, meters, I/O modules, sensors, etc. are integrated in CAN Bus networking, fast-responsive. Fault diagnosis system: Operating device with smart controller, body with BCM module, accurately locating the fault point, making the maintenance convenient.

STC250T5 SANY TRUCK CRANE

① Strong boom: 41m telescopic boom in fi ve sections lifts to a new height of 41.5m, and further to 49m with jib mounted. Larger cross-section boom, achieving a load moment of 1063kN·m. Boom section overlap increased, resulting in higher torsion resistance and bending resistance.
② Powerful chassis: DF Cummins ISLe290 30 engine, FAST 9-speed synchronizing gearbox, rubber suspension, 12R22.5 wire tire. Frame torsion resistance verified by 20k times of reliability and safety cycling test.
③ Precise hydraulics: Better maneuverability : smart fl ow-distribution hydraulic system secures combined action effi ciency and stability. Precise motion: single rope can move stably at a min. speed of 1.2m/min and slewing can be slower to 0.1°/s , realizing micro-motion of millimeter level.
④ Smart control system: BUS control system: instant transfer of information, as fast as 20ms. Fault diagnose: BCM controller for fault detection and easy maintenance. IO power distribution: Independent battery set controlling power distribution for the whole vehicle.
