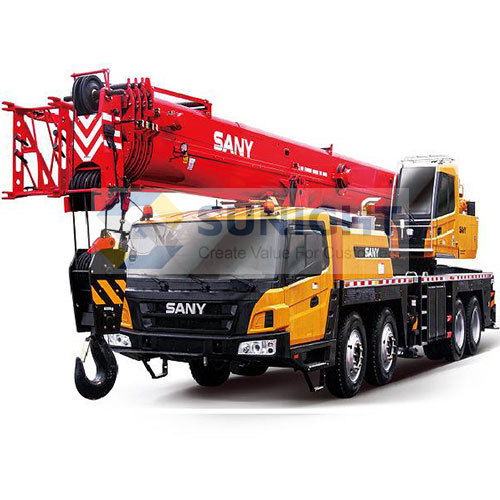

Sany Truck Crane
Description
SANY BRAND
Description
Main Specifications
| STC700C5 Truck Crane Operation | |
| Max Lifting Capacity | 70T |
| Max Lifting Height | 62.5m |
| Max Lifting Moment | 2156kN·m |
| Max Boom Length | 46m |
| Jib Length | 16m |
| Counter Weight | 10.5T |
| STC700C5 Truck Crane Traveling | |
| Engine Model | SDF Cummins ISLe340 30(Euro 3) |
| Max Traveling Speed | 85km/h |
| Operating Weight | 12400kg |
| Wheel Formula | 8×4 |
| Max Gradeability | 43% |
| Available Districts | Middle East countries |
Truck Crane Highlights
SANY truck crane features high stability, driving flexibility, high lifting performance, simple structure, and high efficiency with maximum lifting capacity ranging from 25t to 160t. The adjustable hydraulic system and intelligent electric control system make the truck cranes in high efficiency and low fuel consumption.
Excellent performance
① Super long & strong boom: 46m five-section U shape boom made of high-strength welded structural steel, 16m jib, max. boom + jib length 62m, max. lifting height 62.5m, max. lifting moment 2156kN.m.
② Double pump intelligent flow distribution system: New double pump intelligent flow distribution system, independent luffing, confluent telescoping, combined motion stability increased by more than 50%.
③ Strong bearing chassis: G Class chassis with excellent accessibility, max. gradeability 43% and max. travel speed of 85km/h. Equipped with FAST 9-speed transmission, large speed ratio range, adaptable to slope climbing and high-speed traveling. High bearing capacity Hande axle, rear axle adopts rubber suspension, with reduced driving vibration, more comfortable.
④ High strength two stage outriggers: 6.24m x 7.7m lower positioned front outrigger in H-layout + highstrength rectangular cross-section frame, improve torsion and bending resistance and working convenience.
② Double pump intelligent flow distribution system: New double pump intelligent flow distribution system, independent luffing, confluent telescoping, combined motion stability increased by more than 50%.
③ Strong bearing chassis: G Class chassis with excellent accessibility, max. gradeability 43% and max. travel speed of 85km/h. Equipped with FAST 9-speed transmission, large speed ratio range, adaptable to slope climbing and high-speed traveling. High bearing capacity Hande axle, rear axle adopts rubber suspension, with reduced driving vibration, more comfortable.
④ High strength two stage outriggers: 6.24m x 7.7m lower positioned front outrigger in H-layout + highstrength rectangular cross-section frame, improve torsion and bending resistance and working convenience.
Safety and reliability
① Back up sonar and operation buzzer are installed to notify the driver and operator of the obstacles behind the cranes.
② High-precision moment limiter is working for relaible real-time loading.
③ Multiple sensors help operation monitoring.
② High-precision moment limiter is working for relaible real-time loading.
③ Multiple sensors help operation monitoring.
SGood quality
① Self-developed hydraulic valve functioning adjustment via load feedback, for better fine-tune performance.
② Adaptive to various tough road conditions.
③ Every manufacture process is monitored for sophisticated products.
② Adaptive to various tough road conditions.
③ Every manufacture process is monitored for sophisticated products.
GCP remote control
① China's first equipment remote monitor is developed by Sany.
② Operation conditions and data are collected, making long-distance troubleshooting and control possible.
③ This system enables online parts browsing and purchasing.
② Operation conditions and data are collected, making long-distance troubleshooting and control possible.
③ This system enables online parts browsing and purchasing.
