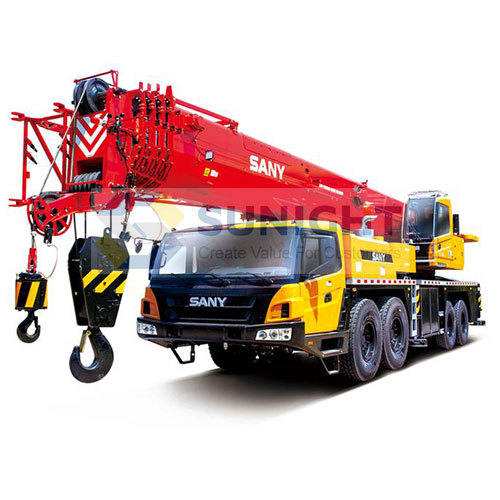

① U shape large cross section 50m boom with 14.3t load capacity at full length, fixed jib 17.5m, 9.5m extension optional, leading in industry
② Globally well-known brand oil pump and balance valve, the min. winch single rope speed ＜ 1.5m/min, the min. stable slewing speed ＜ 0.1°/s, easy to realize high precision mm-level operation. All new double pump intelligent flow distribution system shared by all T-series models lifts combined motion stability by over 50%. Flow confluence for faster telescoping, shunt for more stable luffing.
③ Fixed CW 3.7t, three movable blocks 5t, 6t, 6t, additional 2.5t*2 for option. With CW base support available, the crane can travel with 20.7t CW on board at low speed in short distance. CW assembly & disassembly realized by one operator via remote control, efficiency increased, cost reduced.
④ DF CUMMINS large torque engine, FAST 10-speed gearbox with emergency steering, HANDE strong bearing axles, ensuring both robust power and fuel economy.

① Back up sonar and operation buzzer are installed to notify the driver and operator of the obstacles behind the cranes.
② High-precision moment limiter is working for relaible real-time loading.
③ Multiple sensors help operation monitoring.

① Self-developed hydraulic valve functioning adjustment via load feedback, for better fine-tune performance.
② Adaptive to various tough road conditions.
③ Every manufacture process is monitored for sophisticated products.

① China's first equipment remote monitor is developed by Sany.
② Operation conditions and data are collected, making long-distance troubleshooting and control possible.
③ This system enables online parts browsing and purchasing.

What We Do: In the past three decades, we have expanded our business to a wide range of areas, including construction and mining equipment, port machinery, oil drilling machinery, and renewable wind energy systems. We keep exploring more possibilities to expand our reach and innovate our way of doing business as well as to raise the standard and answer the call for new market needs.

Working on the Future: SANY is a forward-looking company that was born in a time of change and now looks for any opportunity in those changes that will lead the way to the future. We are unleashing the power of data in the connectivity of machines, realizing smart manufacturing and autonomous operation with some models. The efforts to add a new electric product portfolio makes SANY stand out in today’s digital world and is also part of its sustainable solutions.
