XCMG Motor Grader
Description
XCMG BRAND
Description
Main Specifications

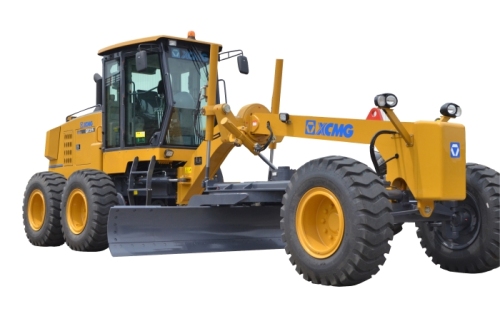

| Model | XCMG Motor Grader GR215 |
| Engine Model | Cummins 6CTA8.3 |
| Rated power/speed | 160/2200kW/rpm |
| Forward velocity | 5/8/11/19/23/38km/h |
| Reverse speed | 38679km/h |
| Tractive effort f=0.75 | ≥85kN |
| Minimum turning radius | 7.3m |
| Length X chord height | 3965*610mm |
| Overall dimension(standard) | 8970*2625*3420mm |
| Total weight(standard) | 16500kg |
| Warranty | One year warranty |
Equipment Highlights
GR215 series motor graders are mainly used for road leveling, digging trenches, scraping slopes, bulldozing, loosening soil, snow removal and other operations in large areas such as highways, airports and farmland. It is a necessary construction machine for engineering, mine construction, urban and rural road construction, water conservancy construction, farmland improvement, etc.
- 1. New exterior design.
- 2. Adopt articulated frame, with front wheel steering, small turning radius and flexible maneuverability.
- 3. Electro-hydraulic control power shift transmission, 6 gears forward and 3 gears reverse.
- 4. Using international supporting hydraulic parts, the work is reliable.
- 5. Blade action is fully hydraulically controlled.
- 6. The rear axle is a three-stage drive axle with a NO-SPIN self-locking differential.
- 7. Adjustable console, seat, joystick and instrument are reasonably arranged, easy to use and improve driving comfort.
- 8. The cab is luxurious and beautiful, with wide field of vision and good sealing.
- 9. Front bulldozer, rear ripper, front ripper and automatic leveling device can be installed.
- 2. Adopt articulated frame, with front wheel steering, small turning radius and flexible maneuverability.
- 3. Electro-hydraulic control power shift transmission, 6 gears forward and 3 gears reverse.
- 4. Using international supporting hydraulic parts, the work is reliable.
- 5. Blade action is fully hydraulically controlled.
- 6. The rear axle is a three-stage drive axle with a NO-SPIN self-locking differential.
- 7. Adjustable console, seat, joystick and instrument are reasonably arranged, easy to use and improve driving comfort.
- 8. The cab is luxurious and beautiful, with wide field of vision and good sealing.
- 9. Front bulldozer, rear ripper, front ripper and automatic leveling device can be installed.
XCMG BRAND
Xuzhou Construction Machinery Group Co., Ltd. (XCMG) was founded in 1943. Since then, XCMG has stood at the forefront of the Chinese construction machinery industry and developed into one of the domestic industry's largest, most influential, and most competitive enterprise groups with the most complete product varieties and series.
- TECHNOLOGICAL STRENGTH: XCMG is the 3rd largest construction machinery company in the world. It is ranked 65th in the list of China's Top 500 Companies, 44th in the list of China's Top 100 Manufacturing Enterprises, and 2nd in the list of China's Top 100 Machinery Manufacturers. XCMG is dedicated to its core value of "Taking Great Responsibilities, Acting With Great Morals, and Making Great Achievements" and its corporate spirit of being “Rigorous, Practical, Progressive, and Creative” in order to keep moving towards its ultimate goal of becoming a leading world-class enterprise capable of creating real value.
- GREEN TECHNOLOGY: As a leading enterprise in China's construction machinery industry, XCMG has transcended the traditional business philosophy of putting profit before all else in order to meet its economic and moral responsibilities by emphasizing its contributions to customers, employees, partners, the environment, and society, and dedicating itself to green manufacturing, green R&D, environmental protection, energy conservation, reducing emissions, and developing a circular economy, all of which exemplify the company's strong sense of social responsibility.
- Hybrid Technology: XCMG pooled its technological advantages to carry out in-depth studies on gasoline-electric hybrid engine systems and actively apply it to product R&D. This system converts pressure from the swing overflow and main pump overflow into electric energy, which is transmitted to the motor to provide auxiliary power.
- GREEN TECHNOLOGY: As a leading enterprise in China's construction machinery industry, XCMG has transcended the traditional business philosophy of putting profit before all else in order to meet its economic and moral responsibilities by emphasizing its contributions to customers, employees, partners, the environment, and society, and dedicating itself to green manufacturing, green R&D, environmental protection, energy conservation, reducing emissions, and developing a circular economy, all of which exemplify the company's strong sense of social responsibility.
- Hybrid Technology: XCMG pooled its technological advantages to carry out in-depth studies on gasoline-electric hybrid engine systems and actively apply it to product R&D. This system converts pressure from the swing overflow and main pump overflow into electric energy, which is transmitted to the motor to provide auxiliary power.
