XCMG Excavators
Description
Description
Main Specifications

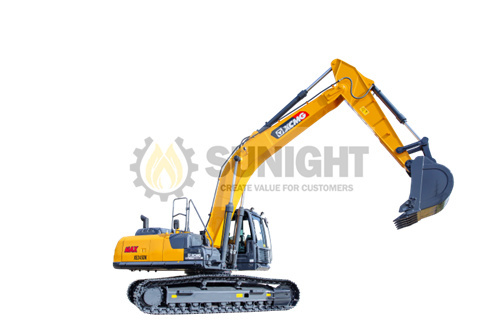

| Model | XCMG Medium Excavator XE245DK MAX |
| Engine Model | Cummins QSB7 |
| Operating weight | 25800Kg |
| Bucket capacity | 1.1-1.5 |
| Engine rated power | 150/2050kW/rpm |
| Bucket digging force | 185kN |
| Maximum excavation depth | 6972mm |
| Warranty | One year warranty |
Equipment Highlights
XE245DK MAX medium excavator is widely used in small and medium earthwork, sand field, mining, municipal, road, water conservancy, highway and bridge construction and other projects.
- 1. The customized low-speed high-torque engine, combined with XCMG's unique "feedforward intelligent control system (PIC)" platform technology, makes the whole machine respond faster, save more fuel, and its fuel consumption is more than 7% lower than similar products in the market;
- 2. The new electronically controlled positive flow hydraulic system, the main pump responds quickly, matches the large diameter, low pressure loss, and high-efficiency main valve, saving 1% of energy in leveling operation and 3.8% in loading operation;
- 3. The newly upgraded non-uniformly distributed large slewing bearing, the ball diameter increases by 25%, the raceway diameter increases by 5%, the slewing torque increases by 15%, the slope operation is easier, and the bolts are not evenly distributed, reducing the risk of slewing support bolt breakage by 12% , to increase the durability of mining operations;
- 4. The chassis drag chain wheel is upgraded from cantilever type to bilateral support, the bearing capacity is increased by more than 50%, the mushroom head of the chain rail is partially thickened, the cross-sectional area is increased by 6%, and the service life is increased by 15%; to ensure harsh working conditions such as mines high reliability and durability.
- 5. Buckets can be customized according to working conditions. Optional 1.5m3 high-efficiency large earthmoving bucket can improve the digging efficiency by 15%.
- 2. The new electronically controlled positive flow hydraulic system, the main pump responds quickly, matches the large diameter, low pressure loss, and high-efficiency main valve, saving 1% of energy in leveling operation and 3.8% in loading operation;
- 3. The newly upgraded non-uniformly distributed large slewing bearing, the ball diameter increases by 25%, the raceway diameter increases by 5%, the slewing torque increases by 15%, the slope operation is easier, and the bolts are not evenly distributed, reducing the risk of slewing support bolt breakage by 12% , to increase the durability of mining operations;
- 4. The chassis drag chain wheel is upgraded from cantilever type to bilateral support, the bearing capacity is increased by more than 50%, the mushroom head of the chain rail is partially thickened, the cross-sectional area is increased by 6%, and the service life is increased by 15%; to ensure harsh working conditions such as mines high reliability and durability.
- 5. Buckets can be customized according to working conditions. Optional 1.5m3 high-efficiency large earthmoving bucket can improve the digging efficiency by 15%.
