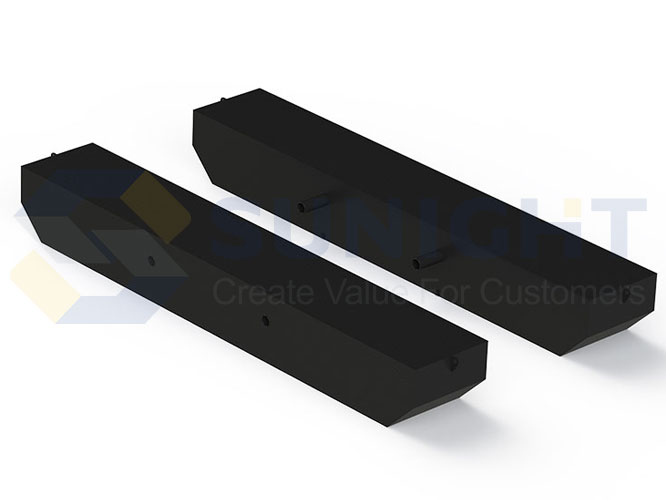

High Quality Additional Side Pontoons For Sale
Enhancing Amphibious Excavators
SUNIGHT's additional side pontoons are auxiliary flotation devices attached to the sides of amphibious undercarriages. They serve several key purposes that enhance the performance and functionality of amphibious machinery.
Features of Additional Side Pontoons
- → Increased Buoyancy: These pontoons provide enhanced buoyancy, allowing amphibious excavator to float more effectively on water surfaces, reducing the risk of sinking.
- → Enhanced Stability: By extending the width of the amphibious undercarriage, side pontoons improve the overall stability of the equipment. This is particularly important when operating in deep or turbulent waters.
- → Load Distribution: They help distribute the weight of the amphibious machinery more evenly across a larger surface area, minimizing ground pressure and reducing the impact on soft, muddy, or unstable substrates.
- → Versatility: Side pontoons can often be attached or detached as needed, providing flexibility for the amphibious excavators to operate efficiently both on land and water.
- → Safety: The increased flotation and stability offered by side pontoons enhance the safety of operations by reducing the likelihood of tipping or becoming stuck in challenging environments.
| MODEL | SINGEL PONTOON SIZE | BUOYANCY |
| RC80 | 5500*900*700mm | 6.8T |
| RC150 | 6000*1250*800mm | 13T |
| RC215 | 7000*1250*1000mm | 17.5T |
| RC250 | 7800*1500*1200mm | 28T |
| RC300 | 8000*1500*1200mm | 28.8T |
| RC350 | 8500*1500*1200mm | 30.6T |
| RC400 | 9000*1500*1200mm | 32.4T |
Amphibious Excavators

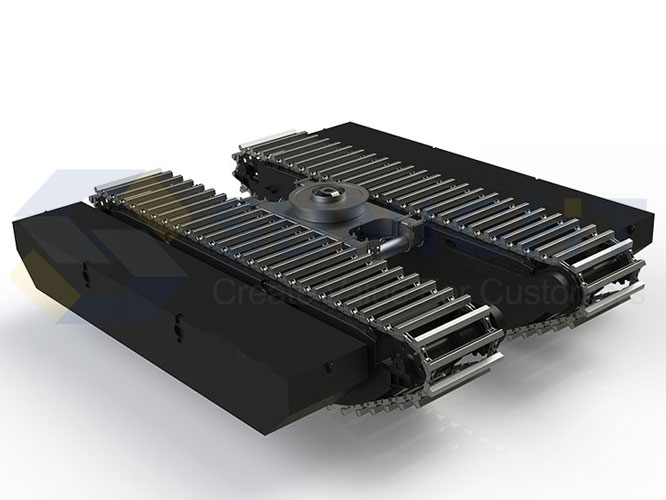

Amphibious UndercarriageEnhancing Amphibious Excavators: The Role of Additional Side Pontoons
The additional side pontoons for amphibious excavators are a critical affiliate device designed to enhance the machine's stability and buoyancy in aquatic environments. These specialized pontoons provide extra support, allowing the excavator to operate in a variety of water conditions, from marshes to open water. By increasing the amphibious excavator’s flotation, they enable wider and more secure operations, particularly in areas where traditional crawler excavators cannot tread. These pontoons produced by River are easily attachable, making them a versatile and essential accessory for improving the amphibious excavator's performance and safety during complex, water-based projects.

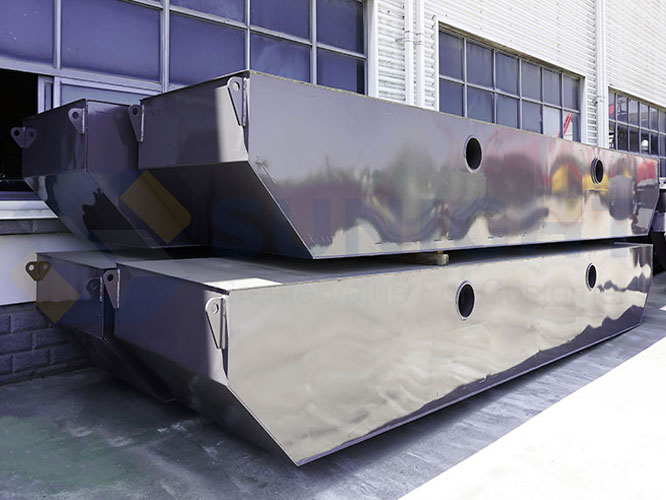

Design and Structure of Side Pontoons:
The design of the additional side pontoons primarily focuses on maximizing flotation while ensuring minimal resistance against water. The pontoons might be equipped with additional features such as watertight compartments, which help to increase flotation and safety in the event of a breach.
Functionality of Additional Side Pontoons:
By attaching these side pontoons, an amphibious excavator gains increased stability, reducing the risk of capsizing in water. This is particularly beneficial when the excavator is required to perform heavy-duty operations, such as dredging, that could otherwise destabilize the amphibious excavator. The enhanced buoyancy provided by these pontoons allows the excavator to navigate deeper waters safely, expanding the range of environments in which it can operate effectively.
Installation and Operation:
The installation of additional side pontoons is typically straightforward, designed to allow for quick attachment or removal depending on the operational requirements. Furthermore, the pontoons can also be outfitted with propulsion and steering systems, we also call it as self-propelled device, transforming the amphibious excavator into a more versatile amphibious platform capable of maneuvering in water with greater control and efficiency.

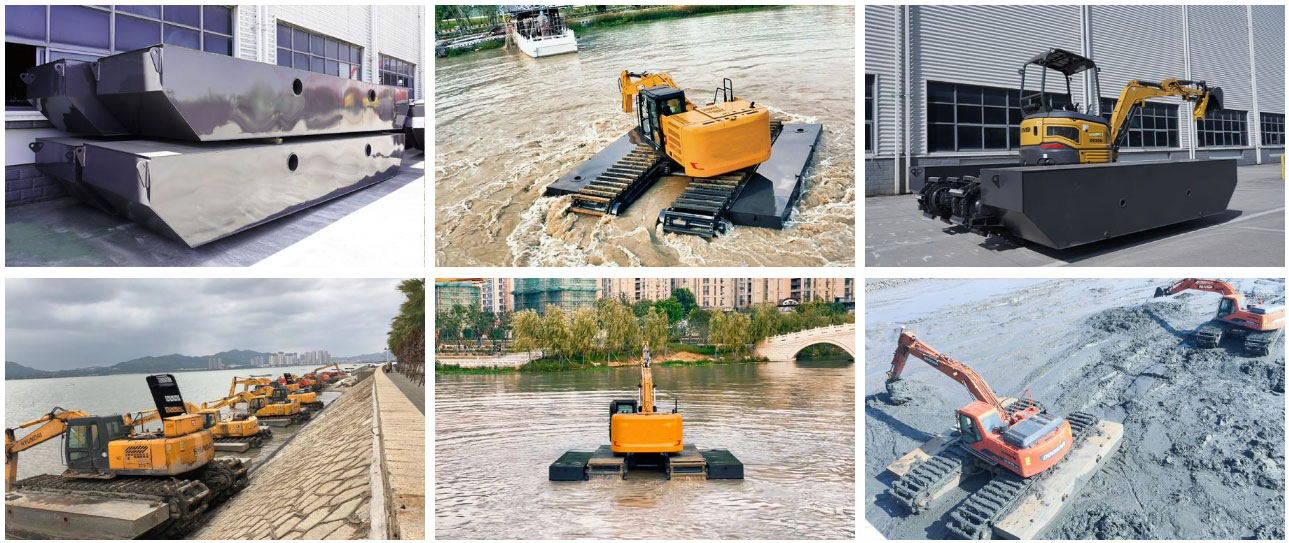

Main Usage of Additional Side Pontoons
- Amphibious Excavators: Enhance buoyancy and stability for excavators working on water or swampy areas.
- Dredging Operations: Provide extra stability for dredgers operating in rivers, lakes, and coastal areas, handling sediment and debris.
- Marine Salvage: Assist in flotation and stabilization during salvage operations to recover sunken vessels or structures.
- Bridge Construction: Facilitate the construction and maintenance of bridges by providing support platforms on the water.
- Pipeline Laying and Maintenance: Help in laying and repairing underwater pipelines by stabilizing the working platforms or barges.
- Flood Rescue and Emergency Response: Employed in rescue efforts during floods, providing floating support for equipment and personnel.
- Aquatic Resource Exploration: Utilized in geological survey and exploration in coastal areas for minerals or biological resources.
