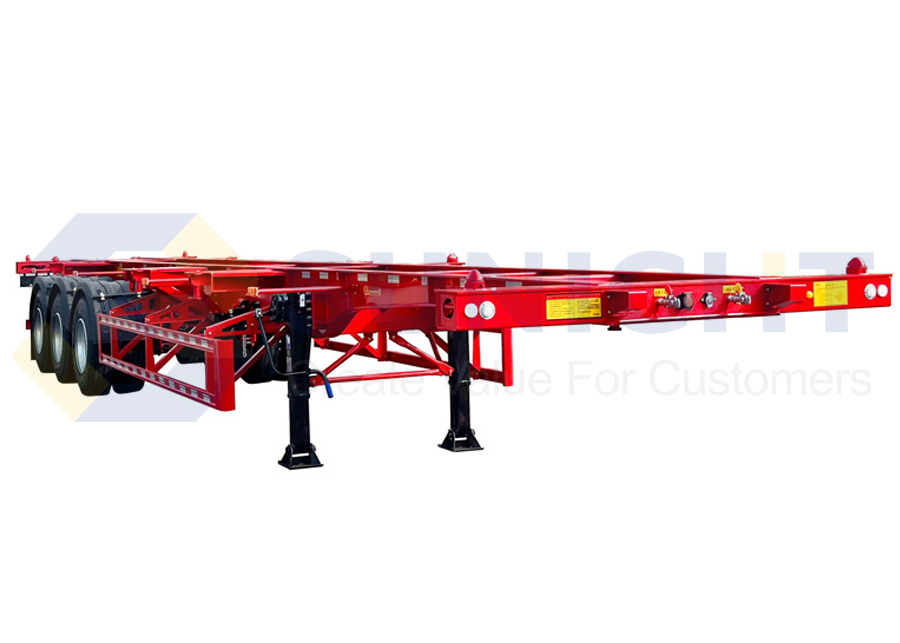

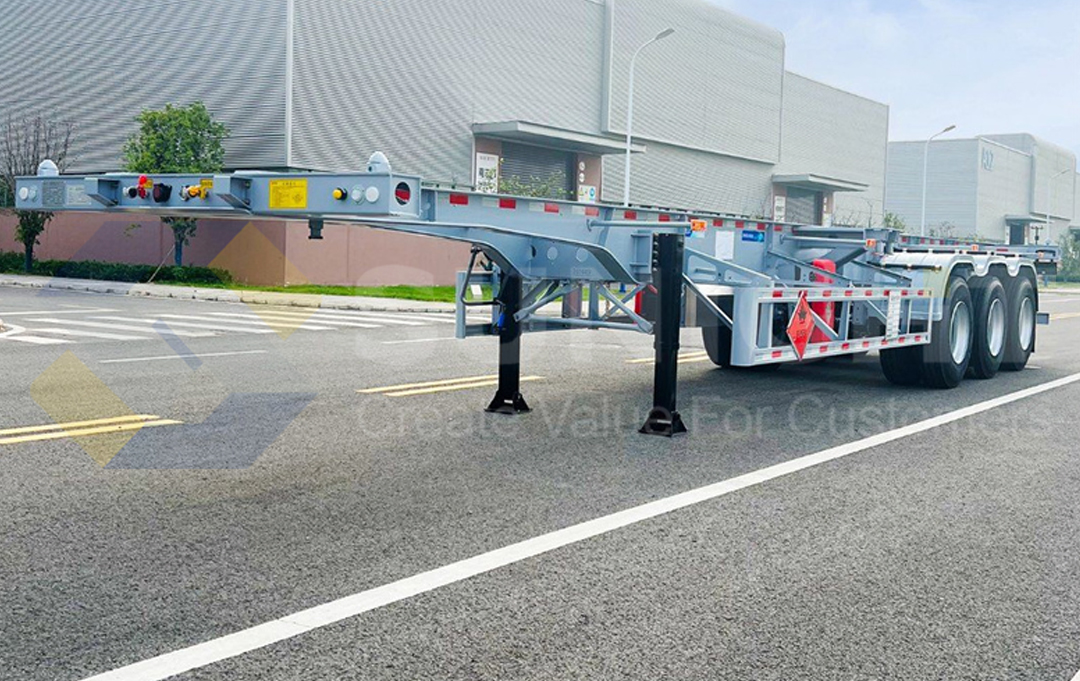

Skeleton Semi-Trailer
For Shipping Container Transport
Container skeleton semi trailer widely used, which is mainly used for long-haul freight transport, eg: 20ft or 40ft container.
Skeleton Semi-Trailer uses the high strength international steel material, the whole trailer has small deadweight, and ensures its anti distortion, earthquake resistance, anti bumping ability,and meets the different road bearing capacity.
● Load Capacity: 20Ton - 50Ton
● Axle Number: 2 Axle, 3Axle, 3 Axle
● Function: Container Transportion
| Size | 12480mm*2480mm*1550mm(Optional) |
| Payload | 30ton 40ton 50ton 60ton 80ton |
| Main beam | Top flange 10/12/14/16mm;Middle Flange 6/8/10/12mm ;bottom flange 12/1416/18mm |
| Side beam | 16/18/20# channel steel(Q235) Or G shape side beam | Cross member | 8/10/12# channel steel(Q235) |
| Package | Nude spray wax or put in 40ft container |

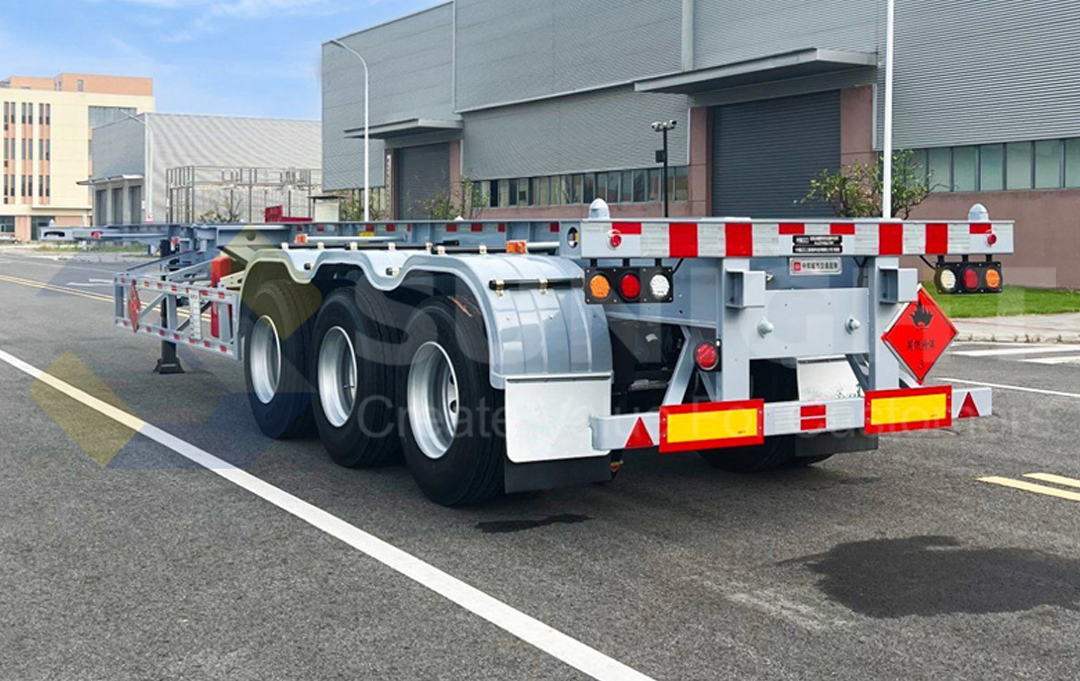

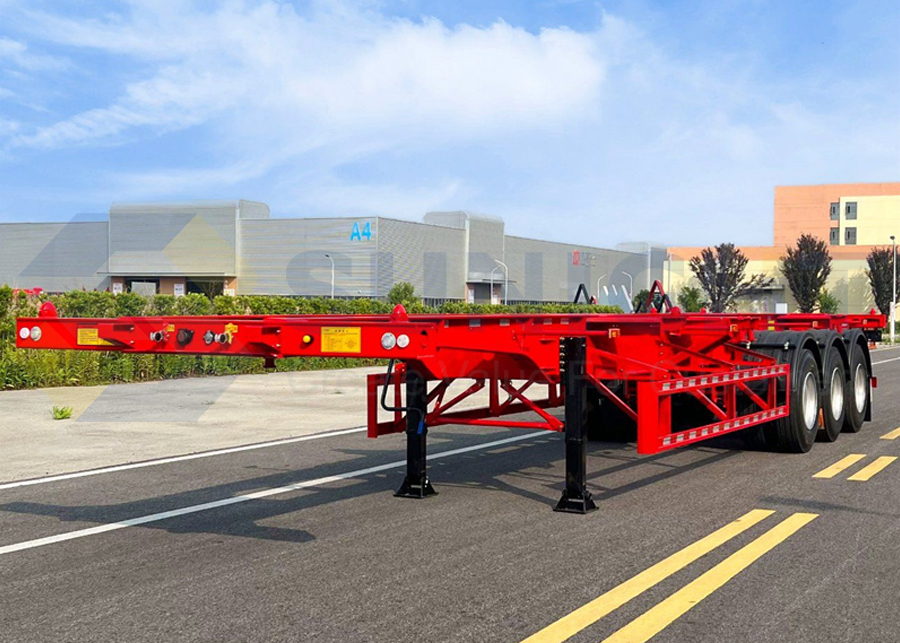

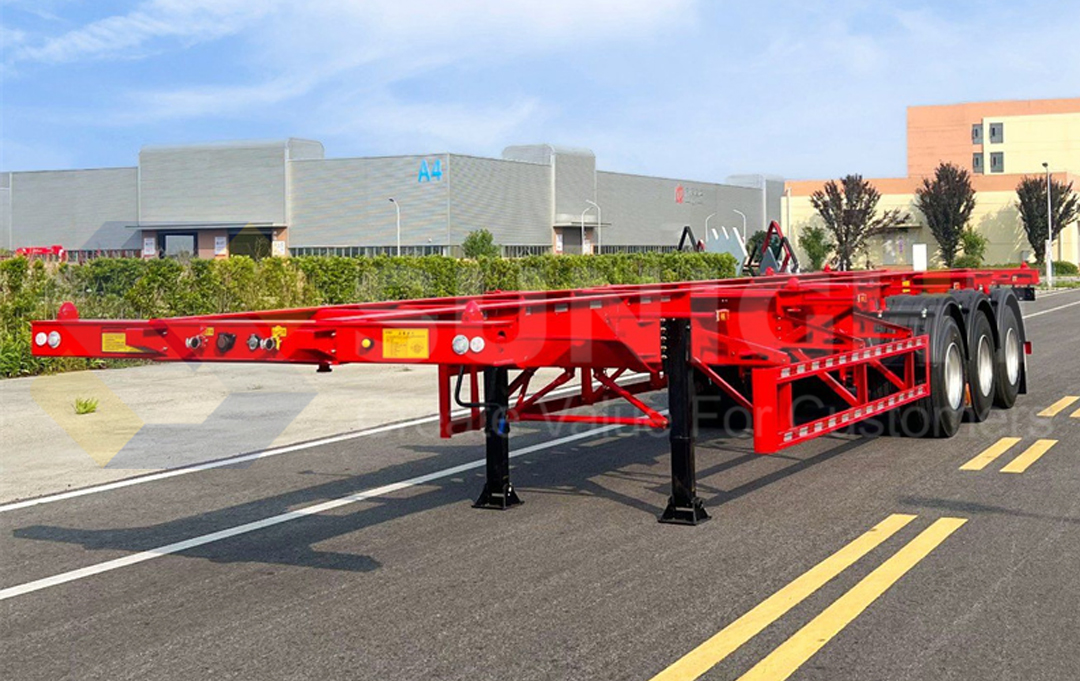

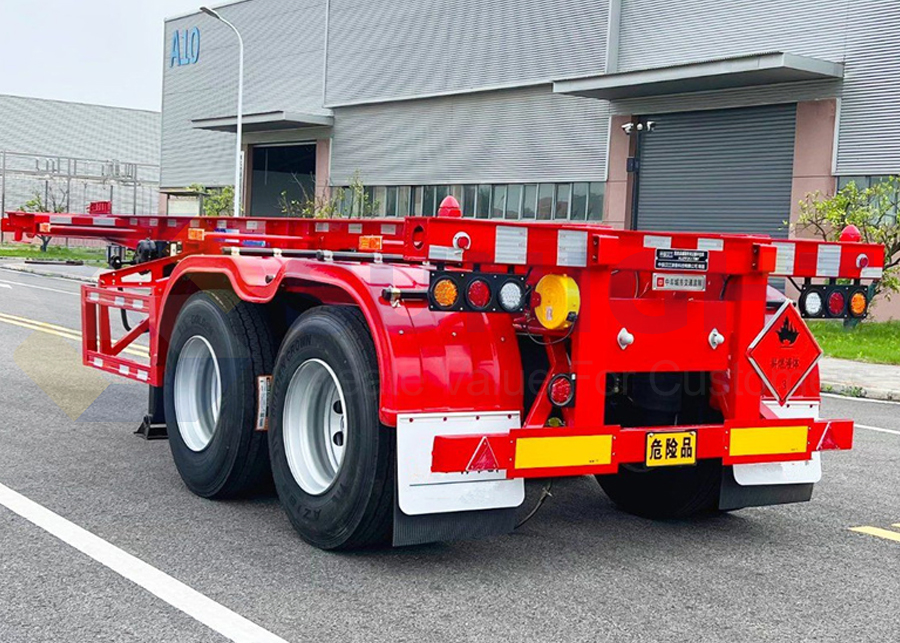

Skeleton Semi-Trailer Different Models
Packaging & Shipping

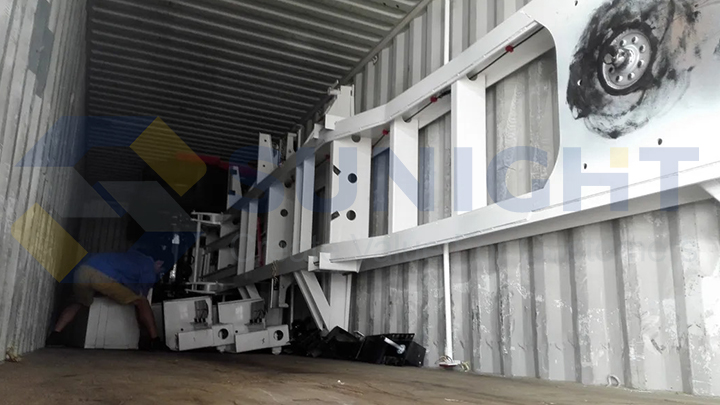

| Transport 1: Loading in the container by cutting the tail. One 40HQ can load two sets 40ft skeleton type semi trailer. |  |
 |

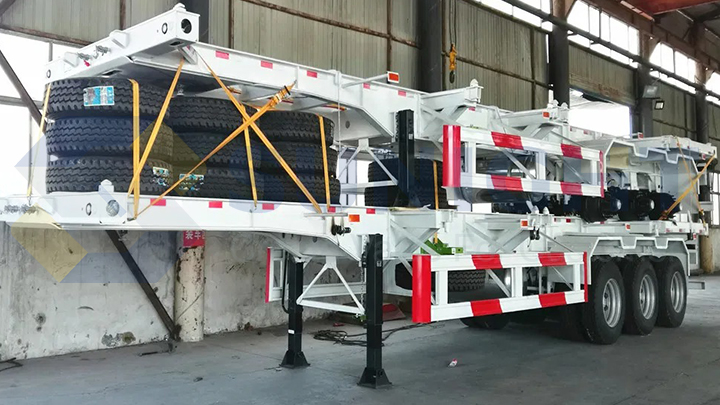

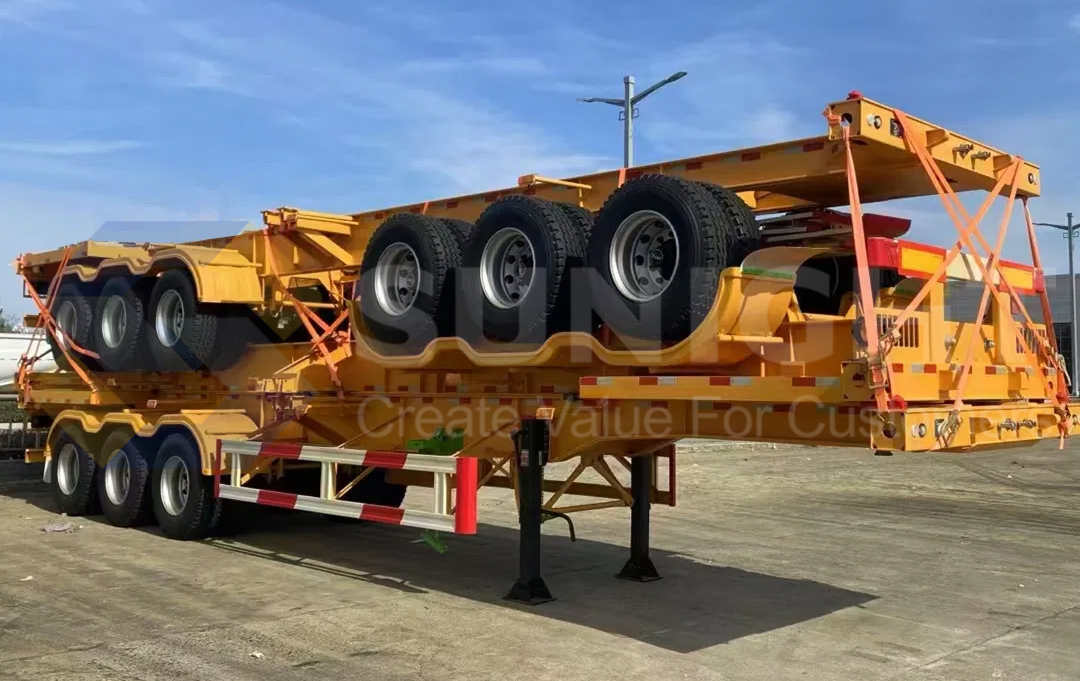

Transport 2: 2 or 3 units skeleton type semi trailer in one set to save cost. Nude with wax spray |

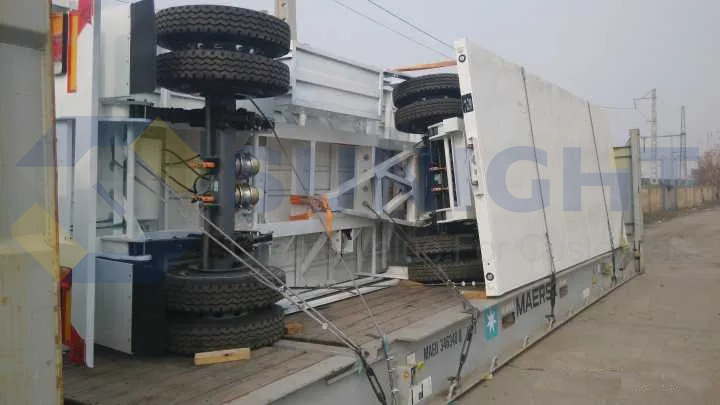

| Transport 3: Frame container, Sometimes customers also choose to use frame boxes to transport semi trailers. |  |
A skeleton semi-trailer (also called a skeletal trailer, container chassis, or skeleton trailer) is a type of semi-trailer specifically designed for transporting shipping containers.
1. Container Twist Locks
Equipped with 4 to 12 twist locks.
Securely holds 20ft, 40ft, or 45ft containers.

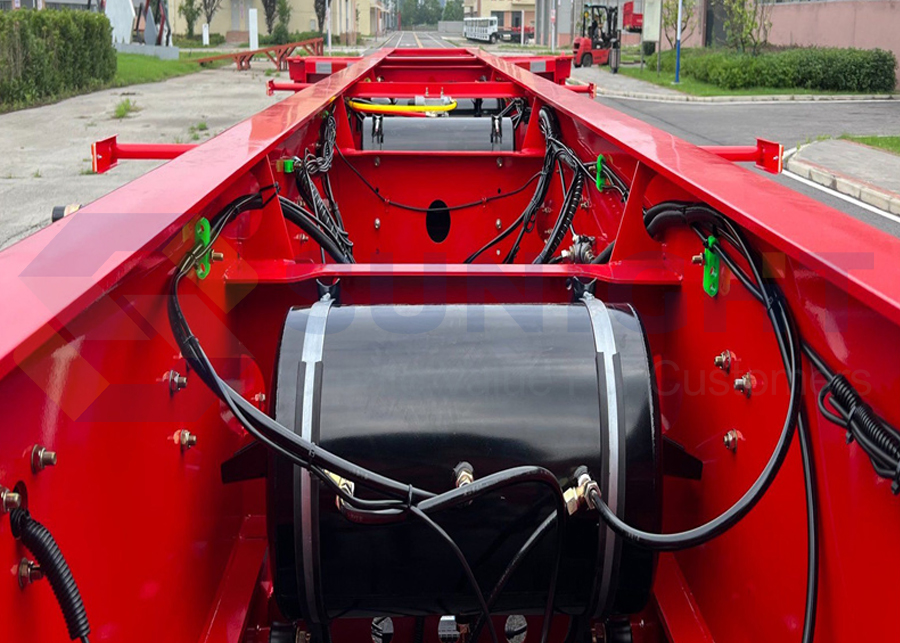

2. Robust Steel Frame
Built with high-tensile steel (often Q345 or equivalent).
Designed for strength and durability under heavy loads.
3. Extendable or Fixed Length
Some models are telescopic (extendable) to carry different container sizes.
Others are fixed-length, optimized for one container type.
4. Standardized Coupling
Universal kingpin connection (2" or 3.5") fits most tractor heads.
Complies with ISO container transport standards.
5. Heavy-Duty Axles & Suspension
Typically fitted with 3 axles, mechanical or air suspension.
Designed to handle up to 60 tons of cargo.
6. Low Tare Weight
Frame-only design reduces self-weight.
Maximizes legal payload and improves fuel efficiency.
