Used Excavator CAT 306E Main Parts Pictures

The CAT 306E is a compact hydraulic excavator manufactured by Caterpillar, designed for versatility, fuel efficiency, and ease of operation in confined spaces. Below are the main parts of the CAT 306E Excavator:

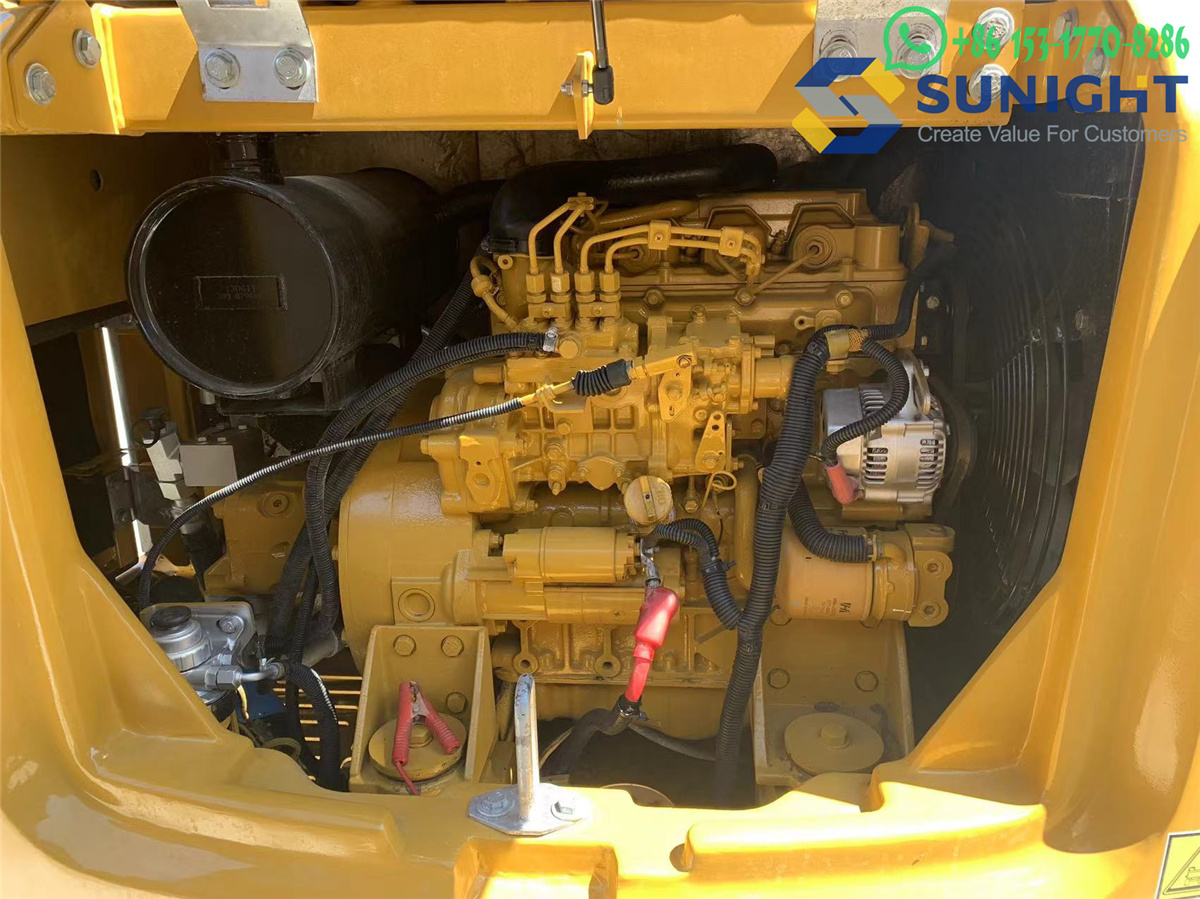

1. Engine

• Model: Typically equipped with a Cat C3.3B engine.
• Power Output: Approximately 55 hp (41 kW).
• Cooling System: Includes a radiator, oil cooler, and hydraulic oil cooler to maintain optimal engine and hydraulic fluid temperatures.

2. Hydraulic System

• Hydraulic Pump: A variable displacement piston pump that provides flow for the boom, arm, bucket, and swing functions.
• Hydraulic Control Valve: Distributes hydraulic fluid to the various hydraulic cylinders, controlling machine movement and attachment function.
• Hydraulic Cylinders: The boom, arm, bucket, and swing cylinders control movement.
• Hydraulic Oil Tank: Stores the hydraulic fluid that powers the hydraulic system.
• Hydraulic Lines: Transfers hydraulic fluid to various components.

3. Undercarriage

• Tracks: Rubber or steel tracks, depending on the machine configuration.
• Track Rollers and Idlers: These components support the tracks and help maintain smooth movement over rough terrain.
• Track Frame: Provides the structural base for the tracks and undercarriage components.
• Final Drive: The mechanical system that transmits power from the engine to the undercarriage, allowing for movement.

4. Boom and Arm

• Boom: The main lifting arm of the excavator, designed to extend upward and outward for digging and lifting operations.
• Arm: Extends from the boom and enables the bucket to reach further or deeper.
• Bucket Linkage: The linkage system connecting the arm to the bucket, providing control over the bucket’s movement.
• Bucket: Interchangeable with various types based on application, such as digging, grading, or trenching.

5. Cab

• Operator Seat: Comfortable, adjustable seating with suspension to reduce vibrations.
• Control Joysticks: Multi-function joysticks that control the boom, arm, bucket, and swing operations.
• Display Panel: Provides real-time diagnostic information, including fuel levels, engine status, and maintenance alerts.
• Climate Control (HVAC): A heating, ventilation, and air conditioning system that ensures operator comfort.
• Safety Features: Roll-over protective structure (ROPS), falling object protective structure (FOPS), and adjustable seat belts.

6. Swing Mechanism

• Swing Drive: A hydraulic motor that drives the rotation of the upper body (house) of the excavator.
• Swing Motor: Powers the upper body’s rotation for a 360-degree swing range.
• Rotary Joint: Allows for the transfer of hydraulic power and fluids to the swing motor while the upper body rotates.

7. Chassis and Frame

• Upper Structure (House): Contains the engine, hydraulic components, and operator’s cab.
• Lower Frame: Supports the undercarriage and provides the structure for the machine’s weight distribution.
• Counterweight: Mounted at the rear of the machine to help balance the weight during operation and prevent tipping.

8. Electrical System

• Battery: Supplies power to start the engine and run electrical components.
• Alternator: Keeps the battery charged and powers electrical systems.
• Wiring and Sensors: Used to monitor the performance of various systems and components in the machine, such as engine health, fuel levels, and hydraulic pressures.
• Fuses and Relays: Protect the electrical components from overcurrent or short-circuits.

9. Fuel System

• Fuel Tank: Stores diesel fuel for the engine.
• Fuel Filters: Filter out contaminants from the fuel to prevent engine damage.
• Fuel Lines: Carry fuel from the tank to the engine.

10. Cooling System

• Radiator: Cools the engine by transferring heat from the coolant to the surrounding air.
• Oil Cooler: Cools hydraulic oil to maintain proper viscosity and prevent overheating.
• Cooling Fan: Ensures proper airflow to cool the engine and hydraulic components.

11. Braking and Safety System

• Service Brakes: Operated via hydraulic or mechanical systems to stop the machine.
• Parking Brake: A hydraulic or spring-loaded brake that holds the machine stationary when not in use.
• Swing Lock: Prevents the upper structure from rotating unintentionally when the machine is idle or being transported.

12. Air Conditioning and HVAC

• HVAC System: Maintains the internal temperature of the cab for operator comfort, especially in extreme weather conditions.
• Air Filters: Ensure that clean air is circulated in the cab while preventing dust and debris from entering the ventilation system.

13. Attachments and Tools

• Bucket: The primary tool for digging, grading, and material handling, which can be swapped for other types such as a grading bucket or trenching bucket.
• Thumb: An attachment that can be added to the bucket for grasping and holding material.
• Hydraulic Hammer: Used for breaking rock or concrete.
• Hydraulic Shears and Grapple: For demolition or material handling tasks.

14. Boom & Arm Linkage System

• Boom Cylinder: Powers the boom to raise and lower it.
• Arm Cylinder: Moves the arm in and out to help extend or retract the bucket’s reach.

15. Steering and Travel System

• Travel Motors: Provide movement to the tracks, allowing the excavator to travel forward, backward, and rotate.
• Travel Speed Control: Controls the speed at which the machine travels.
• Steering Levers: Allow the operator to control the movement of the machine for precise steering.
