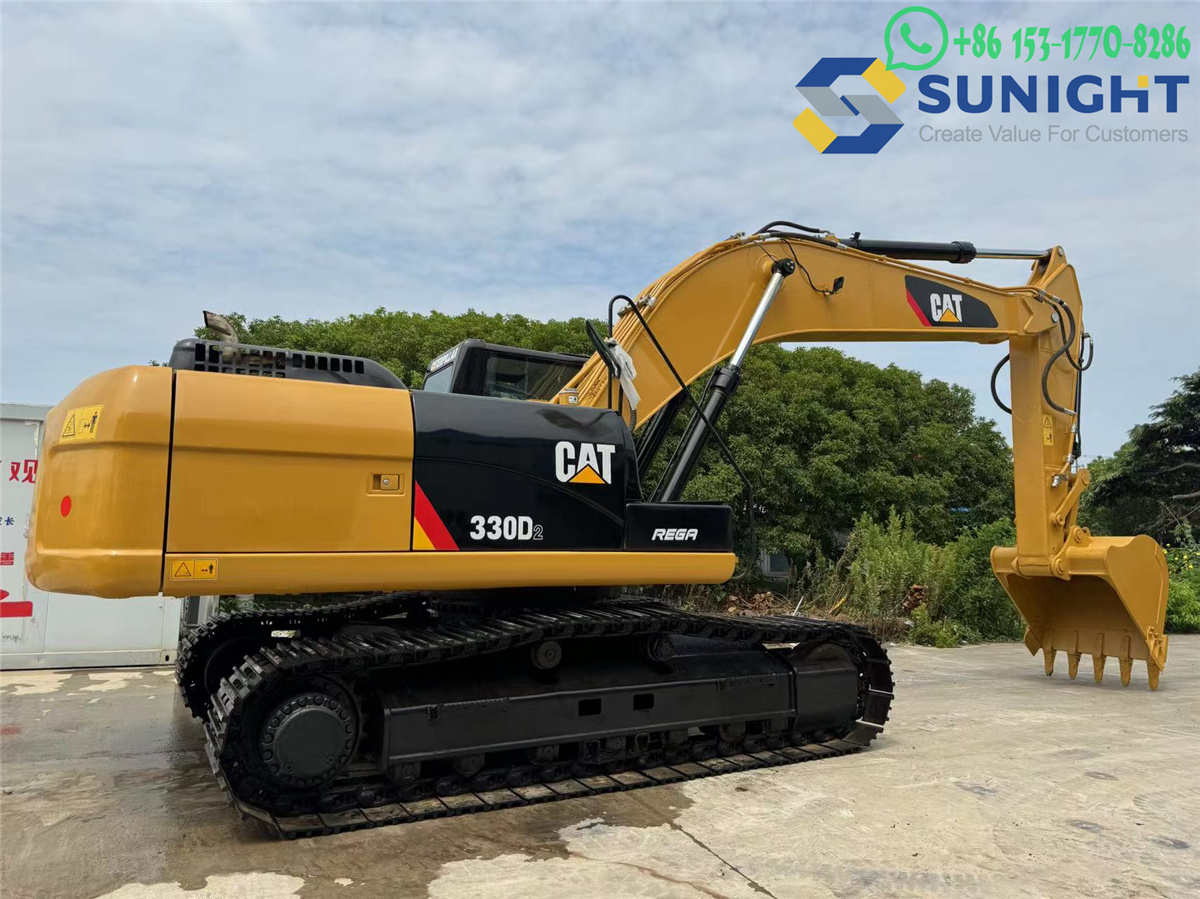

Used Excavator CAT 330D2 Main Parts Pictures

The CAT 330D2 is a highly efficient and versatile hydraulic excavator designed for construction, excavation, and heavy-duty applications. It provides exceptional power, fuel efficiency, and operator comfort. Below are the main parts of the CAT 330D2:

1. Engine System

• Engine: CAT C7.1 ACERT™ engine, Tier 3 / Stage IIIA compliant.
  • Power Output: Approximately 178 kW (239 hp).
  • Cooling System: Includes a radiator, oil cooler, and cooling fan to maintain engine temperature under heavy load.
  • Fuel System: Designed for optimal fuel efficiency, it includes a large fuel tank and advanced fuel injection systems.

2. Hydraulic System

• Hydraulic Pump: High-flow, variable-displacement hydraulic pump that powers the boom, stick, bucket, and other attachments. Delivers precise control for fast and smooth operation.
• Main Control Valve: Regulates hydraulic fluid flow to the boom, stick, and bucket, providing the operator with precise control over the excavator’s movements.
• Hydraulic Cylinders: Operate the boom, stick, and bucket, providing smooth and high-powered lifting and digging capabilities.
• Auxiliary Hydraulics: Used for operating additional attachments such as hammers, augers, or grapples.
• Hydraulic Lines and Hoses: Deliver hydraulic fluid to all key components, ensuring continuous power.

3. Undercarriage

• Track Frame: Provides robust support to the excavator and allows it to distribute weight evenly, ensuring stability during operation.
• Tracks: Durable steel tracks with track shoes, idlers, and rollers that ensure maximum traction and stability on various terrains.
• Rollers (Top and Bottom): These support the track assembly and facilitate smooth movement across surfaces.
• Travel Motors and Final Drives: Propel the excavator across the ground, allowing it to travel easily on rough terrains.

4. Upper Frame

• Cabin:
  • The operator station is designed for comfort, featuring an ergonomic layout, air conditioning, and excellent visibility for precision operation.
  • Equipped with intuitive controls and a digital display for monitoring machine performance and diagnostics.
• Counterweight: Helps stabilize the excavator during heavy lifting, ensuring that the machine does not tip over when the boom or stick is fully extended.
• Service Access Panels: These panels allow easy access to the engine, hydraulic system, and electrical components for maintenance and inspections.

5. Work Group

• Boom: The primary lifting arm used for digging, lifting, and other tasks.
• Stick (Dipper Arm): Extends the boom's reach, allowing for deeper or higher digging and material handling.
• Bucket:
  • Designed for digging, scooping, and material handling. Available in various sizes and types for different applications.
  • Often replaced or swapped depending on the nature of the work being done.
• Pins and Bushings: Provide pivot points for smooth movement between the boom, stick, and bucket, ensuring long-lasting durability.

6. Electrical System

• Battery: Provides power for the starting system and electrical components throughout the machine.
• Control Panel: Displays operational data, machine diagnostics, and alerts for maintenance or malfunctions.
• Lighting System: Includes high-efficiency lights to improve visibility during low-light conditions or nighttime operations.

7. Swing System

• Swing Motor: Powers the rotation of the upper frame (360 degrees), allowing the operator to swing the boom, stick, and bucket as needed.
• Swing Bearing and Gear: These ensure smooth rotation of the upper structure.
• Swing Ring: Facilitates the efficient operation of the swing system.

8. Attachments and Auxiliary Systems

• Quick Coupler (Optional): Allows the operator to change attachments quickly, making the machine more versatile for different tasks.
• Auxiliary Hydraulics: Enable the use of various attachments such as hammers, rippers, and augers for more specialized tasks.
• Standard Attachments: Usually include buckets for digging, but the CAT 330D2 can be equipped with specialized attachments for other functions.

9. Counterweight

• The counterweight ensures machine stability, particularly during lifting and digging operations when the boom or stick is extended.

Key Features of the CAT 330D2

1. Fuel Efficiency: The ACERT™ engine and advanced hydraulic system are optimized to reduce fuel consumption while maintaining high performance.
2. Durability: Caterpillar’s robust construction and high-quality materials ensure long-lasting durability in harsh working conditions.
3. Operator Comfort: The cabin is designed with noise reduction, climate control, and ergonomic seating to enhance operator comfort during long working hours.
4. Improved Hydraulics: High-flow hydraulic pumps and large hydraulic cylinders ensure high digging force and fast cycle times, improving overall productivity.
5. Versatility: Supports a wide range of attachments, allowing the CAT 330D2 to be used for digging, lifting, and material handling in various industries.
