Used Excavator CAT 340D Main Parts Pictures

The Caterpillar (CAT) 340D excavator consists of several main parts, each crucial for its performance and functionality. Here's a breakdown of its key components:

1. Engine

• Type: Typically a CAT C9 ACERT engine
• Function: Provides the power needed for hydraulic and operational functions.

2. Hydraulic System

• Main Hydraulic Pump: Supplies pressurized hydraulic fluid to operate the arm, boom, bucket, and swing.
• Hydraulic Cylinders: Control the movement of the boom, stick (arm), and bucket.
• Hydraulic Oil Tank: Stores the hydraulic oil required for the system.

3. Undercarriage

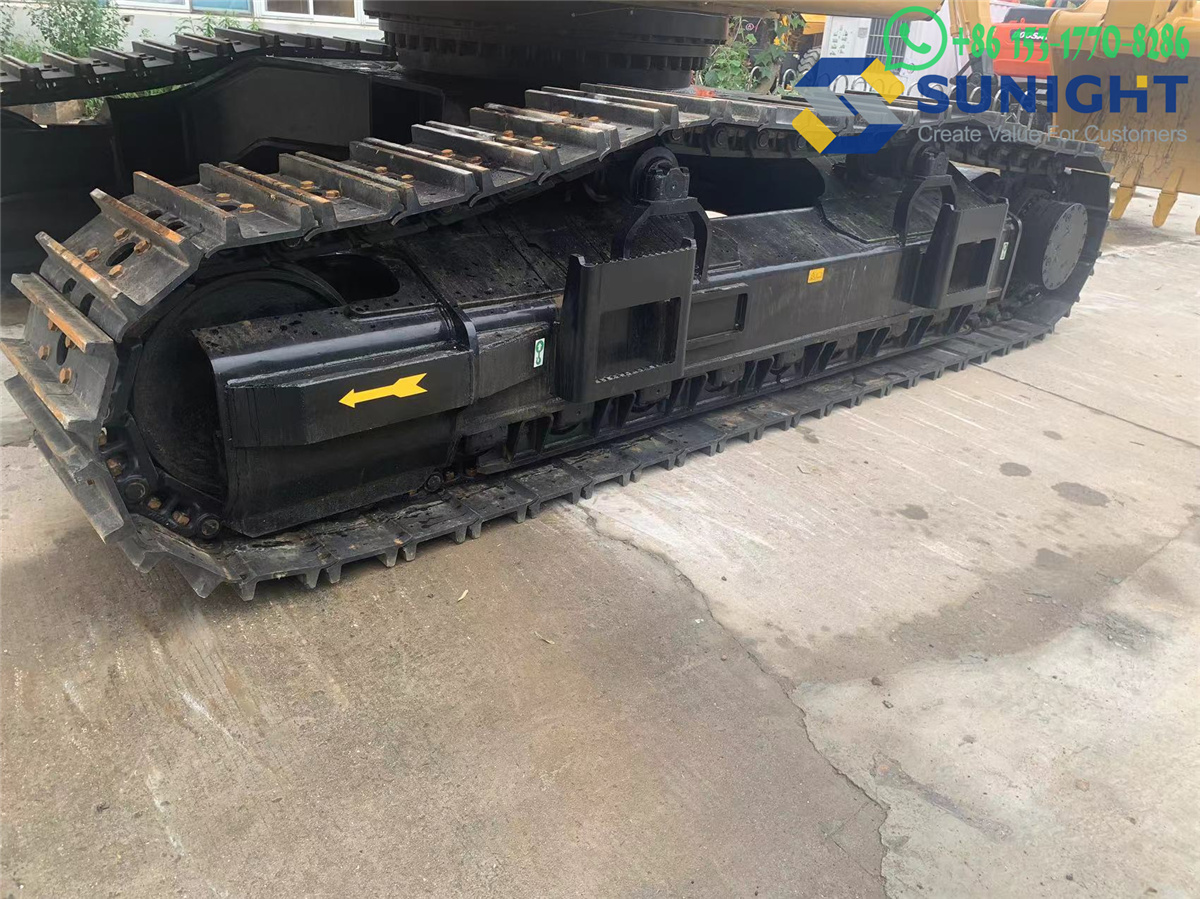

• Tracks: Provide mobility and stability.
• Track Rollers & Idlers: Support and guide the track.
• Track Tensioner: Adjusts the tension of the track for optimal performance.

4. Boom and Stick (Arm)

• Boom: The primary lifting arm connected to the main body.
• Stick (Arm): Attached to the boom, it extends to provide additional reach.
• Pins and Bushings: Allow movement and connection between components.

5. Bucket

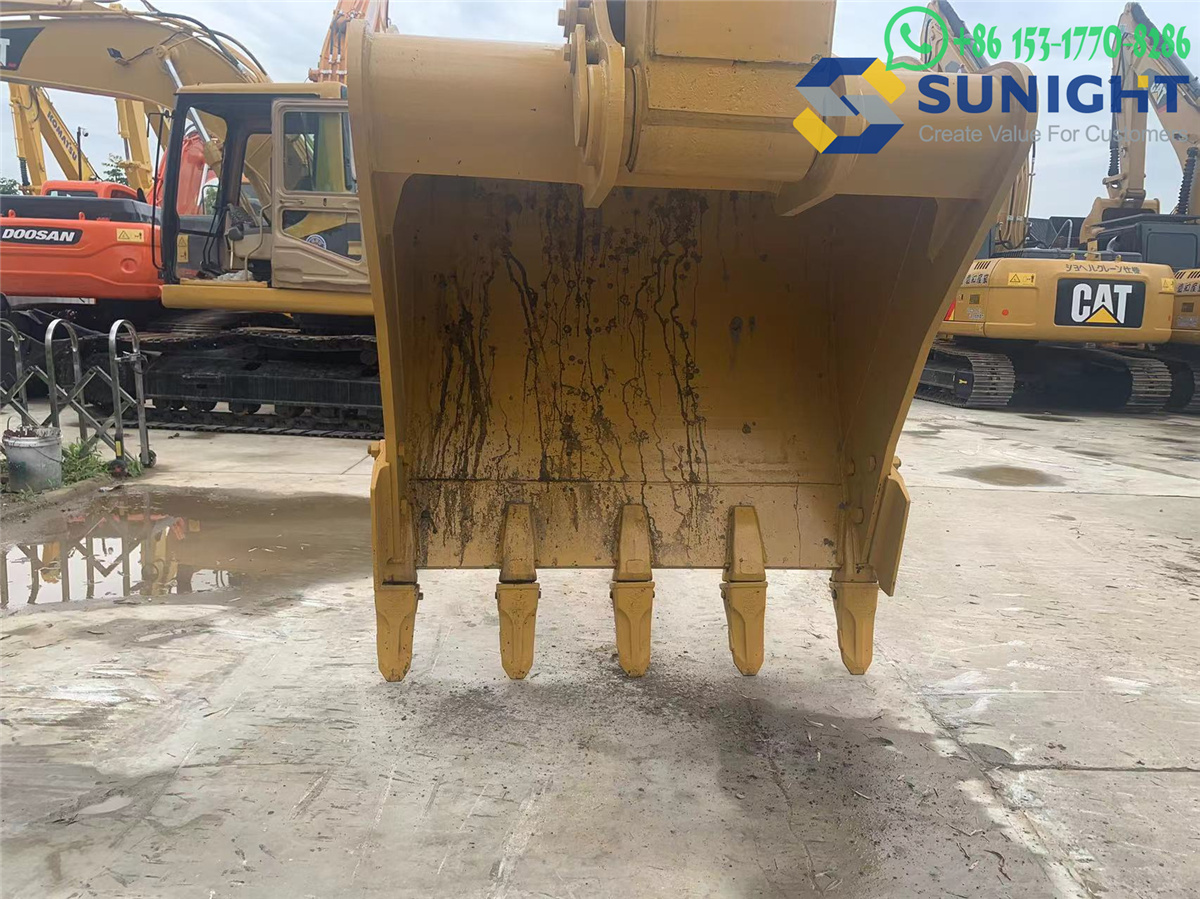

• Bucket Types: General purpose, rock bucket, or specialized buckets depending on the task.
• Teeth: Replaceable parts for digging and cutting through materials.

6. Operator's Cabin

• Controls: Joysticks, pedals, and switches to operate the excavator.
• Display Panel: Monitors engine and hydraulic system performance.
• Seating: Ergonomic for operator comfort.
• Air Conditioning and Heating: Provides comfort in varying climates.

7. Swing Mechanism

• Swing Bearing: Allows the upper structure to rotate 360 degrees.
• Swing Motor and Gearbox: Drive the rotational movement.

8. Main Frame and Counterweight

• Main Frame: Supports all components and provides structural integrity.
• Counterweight: Balances the machine during heavy lifting operations.

9. Electrical System

• Batteries: Power the starter motor and electronics.
• Lighting: Work lights for night or low-light operations.
• Wiring Harness: Connects all electrical components.

10. Cooling System

• Radiator: Keeps the engine temperature in check.
• Fan and Cooling System: Ensures proper engine and hydraulic system cooling.

11. Attachments (Optional)

• Hydraulic Breakers: For breaking concrete and rocks.
• Augers: For drilling holes.
• Quick Couplers: For easy attachment changes.
