Used Excavator Hyundai 305LC-9S Main Parts Pictures

The Hyundai 305LC-9S is a 30-ton class hydraulic excavator known for its reliability, power, and fuel efficiency. Below are the main parts of the Hyundai 305LC-9S Excavator:

1. Engine

• Model: Typically powered by a Cummins QSB6.7 diesel engine.
• Power Output: Around 173 horsepower (129 kW).
• Cooling System: Consists of a radiator, oil cooler, and fan system to regulate engine temperatures.

2. Hydraulic System

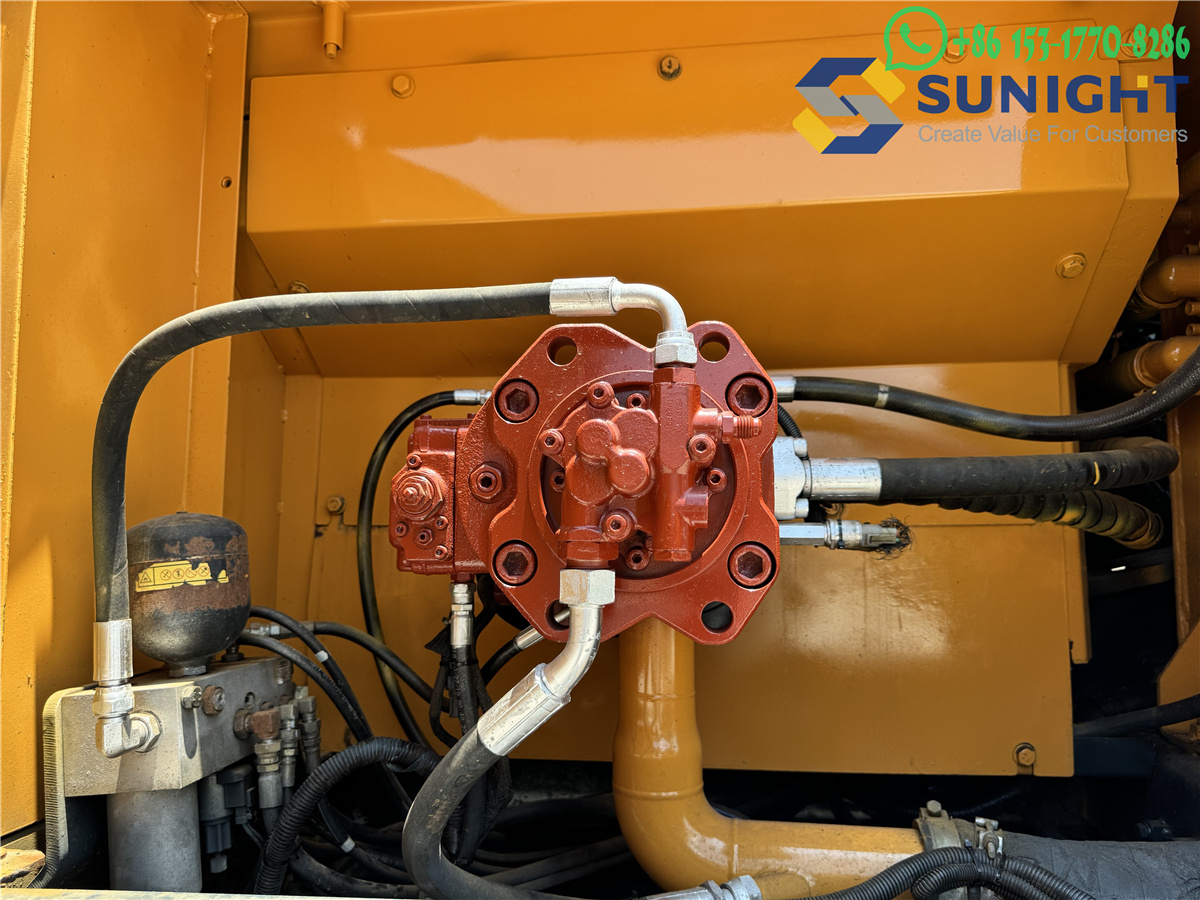

• Main Hydraulic Pump: Variable displacement piston pump that powers the machine’s functions.
• Hydraulic Control Valve: Manages the flow of hydraulic fluid to the boom, arm, and bucket cylinders.
• Hydraulic Cylinders: Includes cylinders for the boom, arm, bucket, and swing, providing movement for digging, lifting, and dumping.
• Hydraulic Oil Tank: Stores hydraulic fluid used for powering the system.
• Hydraulic Lines and Hoses: Transfer fluid throughout the hydraulic system.

3. Undercarriage

• Tracks: Typically steel tracks for heavy-duty operation, though rubber tracks are available for some models.
• Track Rollers: Help support the tracks and ensure smooth operation.
• Track Idlers: Guide and tension the track system.
• Track Frames: Provide a structural base for the tracks and undercarriage components.
• Final Drive: Transfers power from the engine to the undercarriage, allowing the machine to move.

4. Boom and Arm

• Boom: The main lifting arm that extends outward and upward for digging and lifting.
• Arm: Attaches to the boom and extends forward, offering more range for the bucket.
• Bucket Linkage: The joint system between the arm and bucket that allows for effective digging and material handling.
• Bucket: Can be swapped out for various types depending on the work (e.g., digging, grading, or trenching).

5. Cab

• Operator Seat: Designed for comfort, with a suspension system to reduce vibration.
• Control Joysticks: Used for controlling the boom, arm, bucket, and swing functions.
• Display Monitor: A digital screen that provides information on machine performance, diagnostics, and maintenance alerts.
• Air Conditioning and Heating: Climate control system for operator comfort.
• Safety Features: Includes ROPS (Roll-Over Protective Structure), FOPS (Falling Object Protective Structure), and ergonomic controls.

6. Swing Mechanism

• Swing Drive: Powers the rotation of the upper structure of the excavator (house).
• Swing Motor: Rotates the upper part of the excavator for efficient 360-degree operation.
• Rotary Joint: Allows for the transfer of hydraulic fluid and power between the upper and lower sections of the machine.

7. Chassis and Frame

• Upper Structure (House): Contains the engine, cab, and hydraulic components.
• Lower Frame: Provides the structural support for the undercarriage and the excavator’s weight distribution.

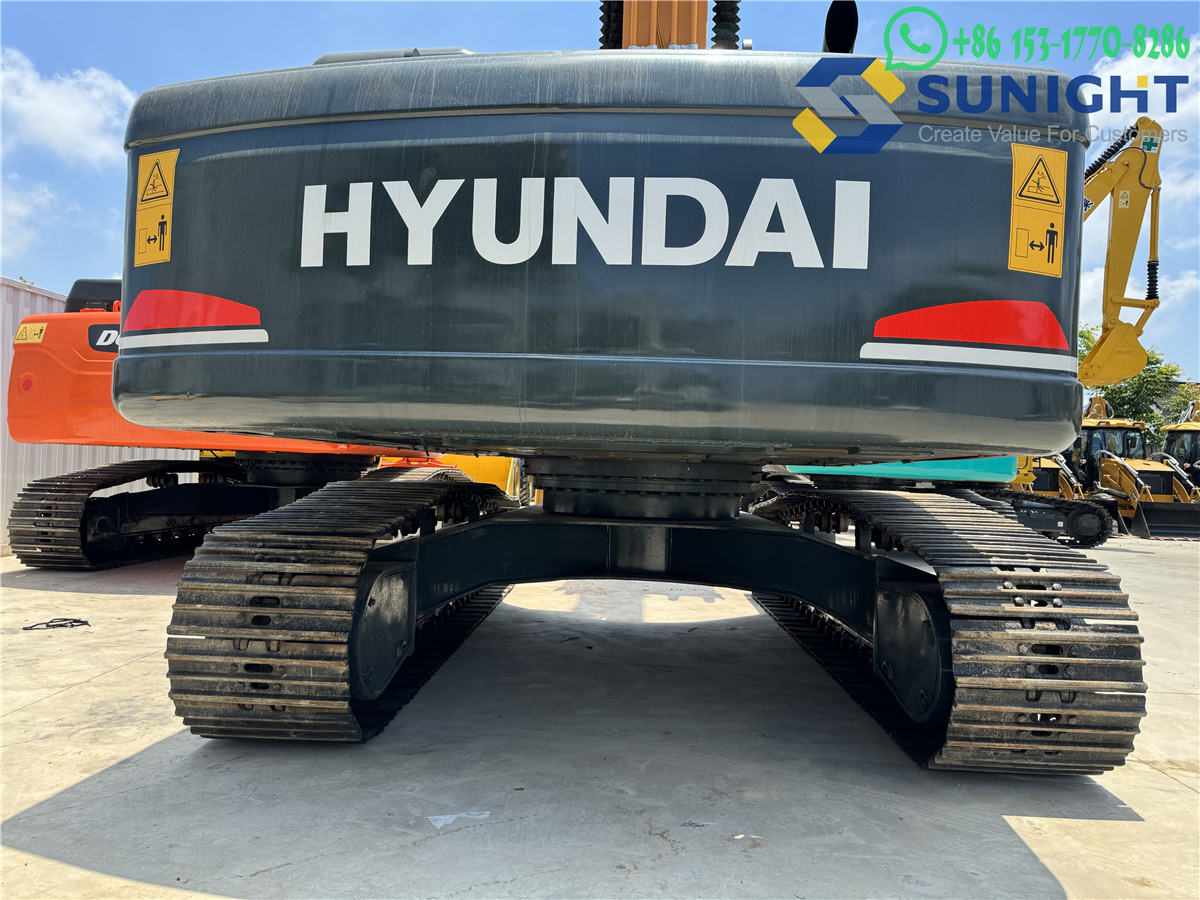

• Counterweight: Located at the rear of the machine, it helps balance the excavator during operation.

8. Electrical System

• Battery: Powers the electrical components and starts the engine.
• Alternator: Generates power to charge the battery and run electrical systems.
• Wiring and Sensors: Integrated to monitor the performance of critical systems (engine, hydraulics, etc.).
• Fuses and Relays: Protect the electrical circuits from overloading.

9. Fuel System

• Fuel Tank: Stores diesel fuel for the engine.
• Fuel Filters: Filter out contaminants from the fuel system.
• Fuel Lines: Carry fuel from the tank to the engine.

10. Cooling System

• Radiator: Cools the engine by transferring heat from the coolant.
• Oil Cooler: Keeps the hydraulic oil temperature within operational limits.
• Fan: Regulates airflow to ensure proper cooling during operation.

11. Braking and Safety System

• Service Brakes: Hydrostatic braking system that stops the machine during operation.
• Parking Brake: Mechanical brake that secures the machine when stationary.
• Swing Lock: Prevents unwanted rotation of the upper body during transport or when the machine is idle.

12. Air Conditioning and HVAC

• HVAC System: Maintains temperature, humidity, and airflow within the operator’s cabin for comfort.
• Air Filters: Prevent dust and debris from entering the cabin.

13. Attachments and Tools

• Bucket: Can be swapped for different types depending on the job, including digging, grading, and trenching buckets.
• Thumb Attachment: Used for grabbing and handling materials.
• Hydraulic Breaker, Auger, Grapple: Other optional attachments that improve the excavator's versatility.

14. Boom & Arm Linkage System

• Boom Cylinder: Powers the boom to raise and lower.
• Arm Cylinder: Moves the arm in and out to control the bucket's distance from the machine.

15. Steering and Travel System

• Travel Motors: Provide movement for the tracks, allowing the machine to move forward, backward, and rotate.
• Steering Levers: Controls the direction of the machine by modulating the travel motors.
