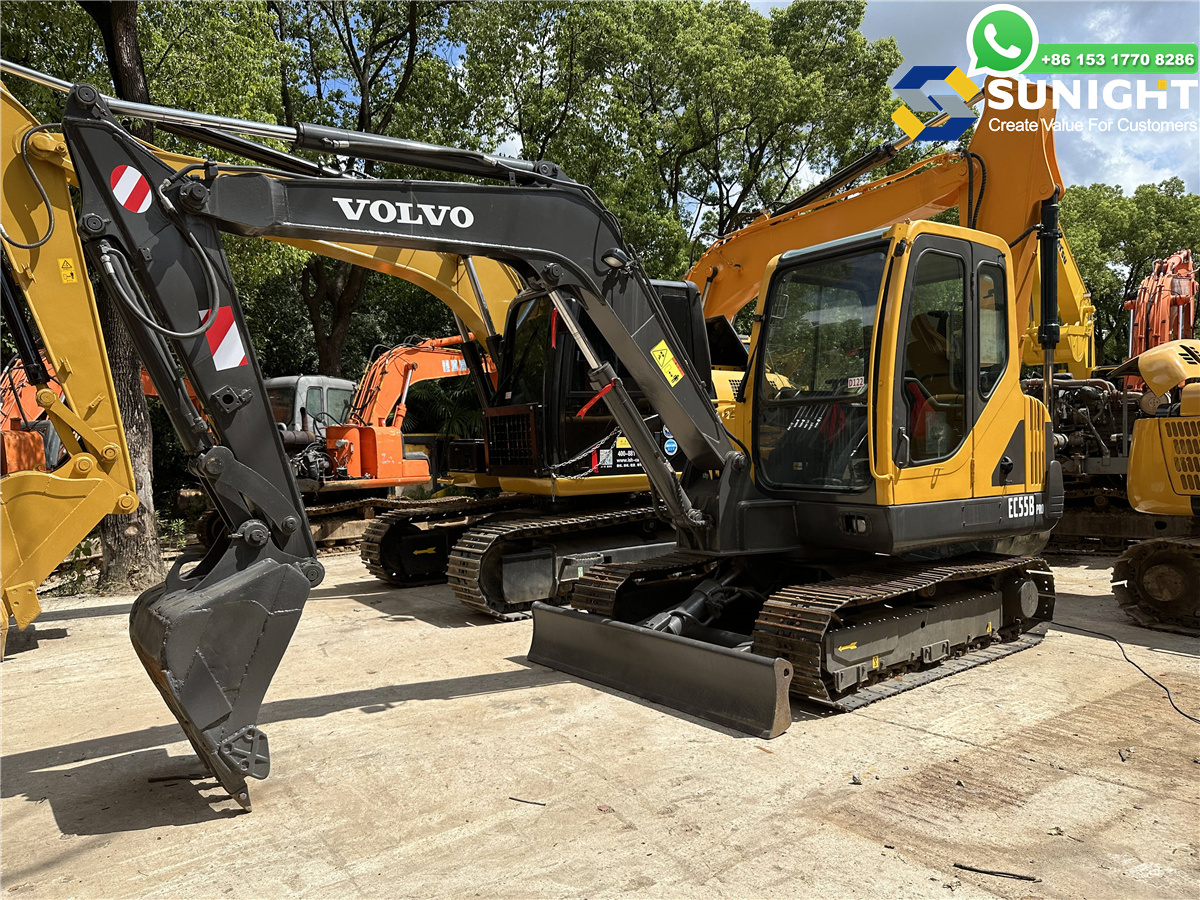

Used Excavator Volvo EC55B Gallery, Images, Pictures

Used Excavator Volvo EC55B Main Parts Pictures

The CAT 329D2 is a powerful and efficient large hydraulic excavator, designed for a wide range of tasks including heavy lifting, digging, and material handling in construction, mining, and other large-scale applications. It is known for its excellent fuel efficiency, powerful hydraulics, and durable design.

Here are the main parts of the CAT 329D2:

1. Engine

• Engine Type: C7.1 ACERT™ Diesel Engine.
• Horsepower: Around 201 horsepower (150 kW).
• Function: Powers the excavator and drives its hydraulic and travel systems.
• Features:
  • ACERT™ Technology: For improved fuel efficiency and reduced emissions.
  • Turbocharged: To enhance engine output and performance.
  • Variable Power Management: Optimizes power delivery based on the machine’s load to improve efficiency and reduce fuel consumption.

2. Hydraulic System

• Main Hydraulic Pump: Delivers hydraulic fluid to the various hydraulic cylinders to control the boom, arm, bucket, swing, and travel functions.
• Hydraulic Cylinders: Control the movement of the boom, arm, and bucket. These are high-capacity, durable cylinders capable of lifting and digging under tough conditions.
• Hydraulic Tank: Stores hydraulic fluid that powers the machine’s various hydraulic components.
• Hydraulic Control Valve: Directs hydraulic fluid to the appropriate cylinders based on the operator’s inputs.
• Hydraulic Filters: Keep the hydraulic system clean, filtering out debris to prevent damage to critical components.

3. Boom

• Function: The boom extends from the excavator’s main frame and supports the arm and bucket, allowing for vertical and horizontal reach.
• Hydraulic Cylinder: Controls the boom's raising and lowering.
• Boom Design: The design is reinforced for strength and durability while minimizing weight, which increases the excavator’s efficiency.

4. Arm (Stick)

• Function: The arm connects the bucket to the boom and provides additional reach for digging, lifting, and material handling.
• Hydraulic Cylinder: Allows the arm to extend and retract.
• Arm Linkage: The linkage design ensures smooth, efficient movement and maximum reach.

5. Bucket

• Function: The bucket is used for digging, scooping, and transporting materials like soil, gravel, rock, and debris.
• Bucket Types: The CAT 329D2 is compatible with various buckets based on work requirements (e.g., digging bucket, heavy-duty bucket, or rock bucket).
• Bucket Linkage: Connects the bucket to the arm, and its design enables the bucket to scoop, tilt, and dump material efficiently.

6. Undercarriage

• Tracks: Provide mobility, stability, and support for the excavator. The tracks are made of heavy-duty steel or rubber, depending on the model.
• Track Rollers: Support the weight of the excavator and help distribute pressure evenly across the tracks.
• Sprockets: Drive the track and provide the necessary traction for movement.
• Idlers: Maintain track tension, preventing slippage and ensuring optimal performance.

7. Cab and Operator Controls

• Cab: Fully enclosed, pressurized, and designed for comfort, providing the operator with protection from environmental factors such as dust, debris, and weather conditions.
• Ergonomics: Adjustable seating, intuitive controls, and customizable operator interfaces to maximize comfort and reduce operator fatigue.
• Display Screen: The high-resolution monitor provides real-time data on fuel usage, machine performance, maintenance alerts, and diagnostics.
• Controls: Joysticks, pedals, and other controls to manage the machine’s movement, hydraulic functions, and auxiliary systems.
• Climate Control: Air conditioning and heating to ensure operator comfort in all working conditions.

8. Travel Mechanism

• Drive Motors: These power the tracks and allow for forward, backward, and turning motions.
• Travel Speed: The CAT 329D2 offers variable travel speeds, which helps the operator adjust to different worksite conditions (e.g., rough terrain, narrow spaces).
• Travel Functionality: The excavator can move efficiently on various types of ground, including mud, gravel, or asphalt, making it versatile in different environments.

9. Counterweight

• Function: Located at the rear of the excavator, the counterweight helps balance the excavator when the boom, arm, and bucket are extended for heavy lifting or digging.
• Weight: It helps prevent tipping by offsetting the forces of lifting or digging, providing increased stability during operations.

10. Swing Mechanism

• Swing Motor: Powers the rotation of the upper structure (cab, boom, arm, bucket) around the undercarriage.
• Swing Bearings: Large, robust bearings that support the rotation of the upper structure.
• Swing Speed Control: Allows for variable control over the swing speed to suit different applications.

11. Cooling System

• Radiator: Cools the engine, hydraulic system, and other components to prevent overheating.
• Cooling Fans: Ensure proper airflow for cooling the engine and hydraulic fluid.
• Coolant Reservoir: Stores and circulates coolant throughout the engine and hydraulic systems to maintain an optimal operating temperature.

12. Electrical System

• Battery: Provides electrical power to start the engine and run electrical systems.
• Alternator: Charges the battery and powers electrical components like lights, sensors, and the operator's display when the engine is running.
• Fuse Box: Distributes electrical power to various systems and protects components from overloads and electrical faults.

13. Fuel System

• Fuel Tank: Stores diesel fuel to power the engine.
• Fuel Filter: Ensures that clean fuel reaches the engine, preventing contamination that could cause damage or reduced efficiency.
• Fuel Pump: Transfers fuel from the tank to the engine as needed.

14. Air Conditioning and HVAC System

• Cab HVAC: The heating, ventilation, and air conditioning system keeps the operator comfortable in varying environmental conditions.
• Air Filters: Prevents dust and contaminants from entering the HVAC system, maintaining a clean cab environment.

15. Exhaust System

• Muffler: Reduces the noise generated by exhaust gases.
• Emission Control: Components like diesel particulate filters (DPF) and selective catalytic reduction (SCR) systems are included to reduce harmful emissions and comply with environmental standards.

16. Service and Maintenance Features

• Maintenance Access: Convenient service points for daily checks and regular maintenance tasks such as checking fluid levels, replacing filters, and greasing components.
• Oil and Filter Change: Easily accessible points for oil and filter changes.
• Diagnostic System: Integrated on-board diagnostic system that provides alerts for maintenance, improving the machine's uptime.
• Grease Points: Located throughout the machine for routine lubrication to minimize wear and tear.

17. Safety Features

• Operator Presence System: Ensures the machine cannot be operated unless the operator is seated and wearing the seatbelt.
• Rollover Protective Structure (ROPS): Provides structural support to protect the operator in the event of a rollover.
• Falling Object Protective Structure (FOPS): Protects the operator from falling debris.
• Cameras and Sensors: Optional rear-view cameras, 360-degree cameras, and proximity sensors for enhanced safety, especially in tight work environments.

18. Attachments and Auxiliary Systems

• Quick Coupler: Allows for fast attachment changes, making it easy to switch between various attachments such as buckets, hammers, and grapples.
• Auxiliary Hydraulics: Provides power to attachments such as breakers, augers, and compactors.
• Hydraulic Thumb: For handling materials that may not be easily scooped into a bucket.
