30.2Ton 1.44M³ Hyundai R305LVS

Large Tonnage Crawler Excavator

● Model: R305LVS Excavator

● Brand Name: Hyundai

● Engine Model: HYUNDAI HE6.7

● Rated Power: 169KW(227HP)/1900RP

● Bucket Capacity: 1.44M³

● Operating Weight: 30200KG

● Classification: Large Crawler Excavator

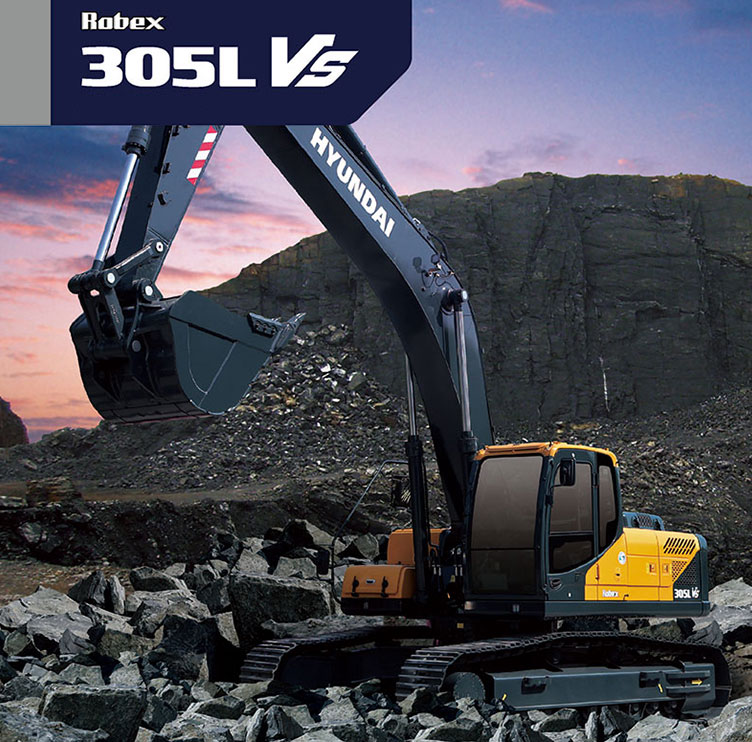

Create value for users! Hyundai Large Excavator R305LVS excavators: the perfect combination of environmental protection, performance and quality! The VS series R305LVS excavator is equipped with a heavy-duty rock bucket, and its durability and service life are increased by more than 2 times, which saves the reinforcement cost for the user. The width of the new VS series heavy-duty rock bucket is shortened, the length is increased, and the stress is eased to reduce the excavation resistance. Side mounted guards and reinforced bottom minimize bucket wear. The bottom edge adopts a FISH TAIL welded shape to disperse stress and improve durability.
Specifications Benefits & Features Video
Model Item Unit parameter
  Working mass kg 30200
  Bucket m3 1.38
Engine Model   Cummins C8.3-C
Rated power kw/rpm 196/1900
Max. Torque kgf/rpm 124.3/1300
Hydraulic System Working pressure kgf/cm2 350
Max. flow L/min 2X252
Working Perfomance Travel speed km/h 5.2/3.1
Gradeability   35°
Max. traction force kgf 27300
Tank Fuel tank L 500
Hydraulic tank L 190

R305LVS Excavator

R305LVS Excavator

Hyundai Excavator Highlights

You'll find a Hyundai crawler excavator model equipped for any digging, lifting and loading application - including confined roadways, major construction projects, mass excavations, heavy-duty mining, scrap handling and more.

Most models feature a Long Carriage (LC) design that maximizes performance in heavy digging and lifting operations. Other options include additional counterweight and boom and arm configurations, so you can handle whatever the job site throws at you.

Wating update

Hyundai excavator
