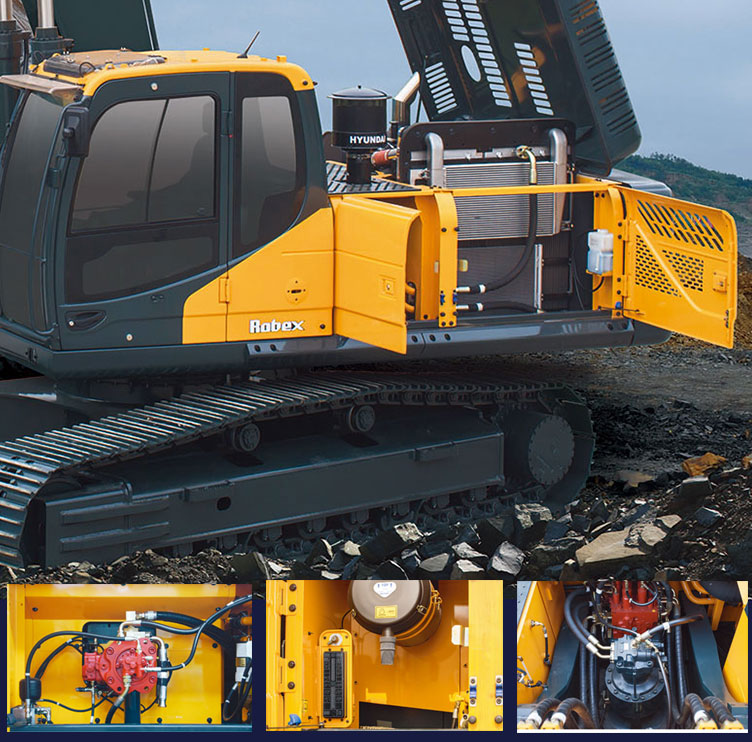

33.2Ton 1.6M³ Hyundai R350LVS
Large Tonnage Crawler Excavator
● Model: R350LVS Excavator
● Brand Name: Hyundai
● Engine Model: HYUNDAI HE8.9
● Rated Power: 221KW (296HP) / 1850RPM
● Bucket Capacity: 1.6M³
● Operating Weight: 33200KG
● Classification: Large Crawler Excavator
| Model | Items | R350LVS |
| Engine | Engine model | Cummins QSL |
| Engine power | 202kW/1850rpm | |
| Max torque | 148kgf.m/1400rpm | |
| Bore*diameter | 114*145mm | |
| Displacement | 8900cc | |
| Hudraulic system | Main pump | two plounger pumps |
| Rated flow of main pump | 2*315L/min | |
| Pilot pump and Pilot loop | Gear pump | |
| Hydraulic motor | Two-speed axial plunger | |
| Working device circuit | 350kgf/cm2 | |
| Slewing system | 300kgf/cm2 | |
| Drive & brake system | Driving type | full hydraulic |
| Speed Deceleration system | Axial piston motor | |
| Max traction force | 27ton | |
| Parking brake | Multi-piece, wet brake | |
| Slewing system | Slewing motor | Axial piston motor |
| Rotary deceleration | Planetary gear reducer | |
| Rotary brake | Multi-piece | |
| Coolant & lubricating oil | Fuel tank | 560Liter |
| engine Coolant | 50Liter | |
| Engine oil | 31.7Liter | |
| Hydraulic system | 330Liter | |
| Hydraulic tank | 190Liter | |
| Rotary device | 11Liter | |
| Chassis | Medium frame | X-type |
| Track support frame | Five-sided box | |
| Number of track shoes | 48pcs each side | |
| Number of drag sprocket | 2pcs each side | |
| Number of rollers | 9pcs each side | |
| weight | Operating weight | 33200kg with 600mm track shoe |
| Upper weight | 14310kg | |
| Counterweight | 6200kg | |
| Boom and arm | 3030kg | |
| Dimension | length*width*height | 10990*3280*3460mm |
| Counterweight ground clearance | 1200mm | |
| tailer length | 3265mm | |
| Arm | 6450mm | |
| Boom | 2850mm | |
| Bucket | 1.6cbm | |
| Max. digging height | 10540mm | |
| Max. digging depth | 6970mm | |
| Max. digging reach | 10920mm | |
| Max. loading height | 7380mm | |
| Max. swing radius | 4520mm |
Hyundai Excavator Highlights
You'll find a Hyundai crawler excavator model equipped for any digging, lifting and loading application - including confined roadways, major construction projects, mass excavations, heavy-duty mining, scrap handling and more.
Most models feature a Long Carriage (LC) design that maximizes performance in heavy digging and lifting operations. Other options include additional counterweight and boom and arm configurations, so you can handle whatever the job site throws at you.
