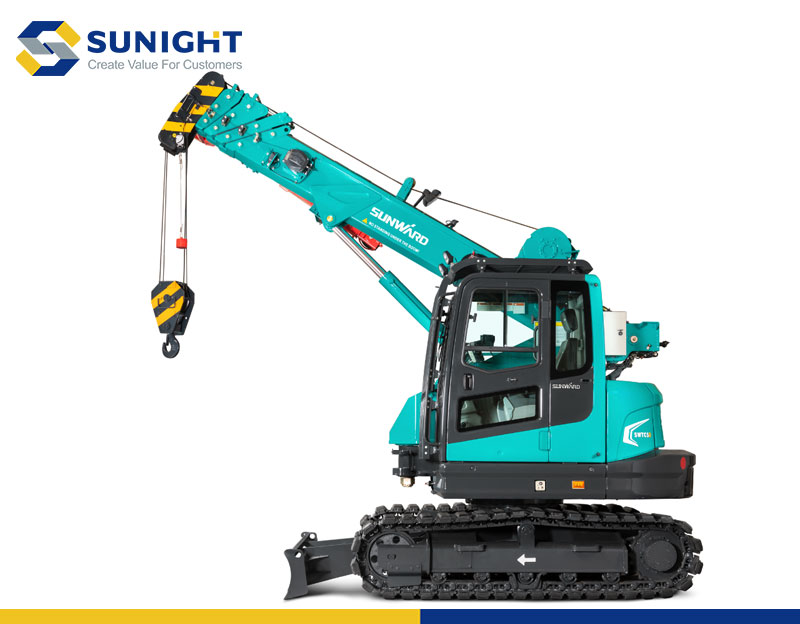

5Ton Telescopic Crawler Crane SWTC 5D
Telescopic Crawler Crane
● Crawler Crane Model: SWTC 5D
● Brand Name: Sunward
● Engine Model: Yanmar 4TNV98C-SSU
● Rated Power: 46.2 kW
● Max. Lifting height: 16.5 m
● Max. Rated Load capacity: 5 000 kg
● Classification: Telescopic Crawler Crane
Operating weight | 10 910 kg |
Shipping length | 5 350 mm |
Shipping width | 2 260 mm |
Height over cabin | 2 835 mm |
Model | Yanmar 4TNV98C-SSU |
Emission rating | EU Stage V |
Displacement | 3.319 L |
Rated power output | 46.2 kW |
Max. Rated Load capacity | 5 000 kg |
Length of basic boom | 4.63 m |
Length of full extension main boom | 16.5 m |
Max. Lifting height of basic boom | 5.3 m |
Max. Lifting height of the longest main boom | 16.5 m |
The Sunward SWTC 5D telescopic crawler crane offers the versatile combination of heavy-duty telescopic boom mounted on an undercarriage with a set of crawlers with compact dimensions. This compact crawler crane is perfect for heavy lifting work with little set-up, enabling it to maneuver itself into very tight areas where other lifting equipment can’t reach. It offers also the ability to travel with a heavy load on any terrain, even the roughest. Equipped with Yanmar engines, the SWTC 5D meets the European Stage V emission standards.
