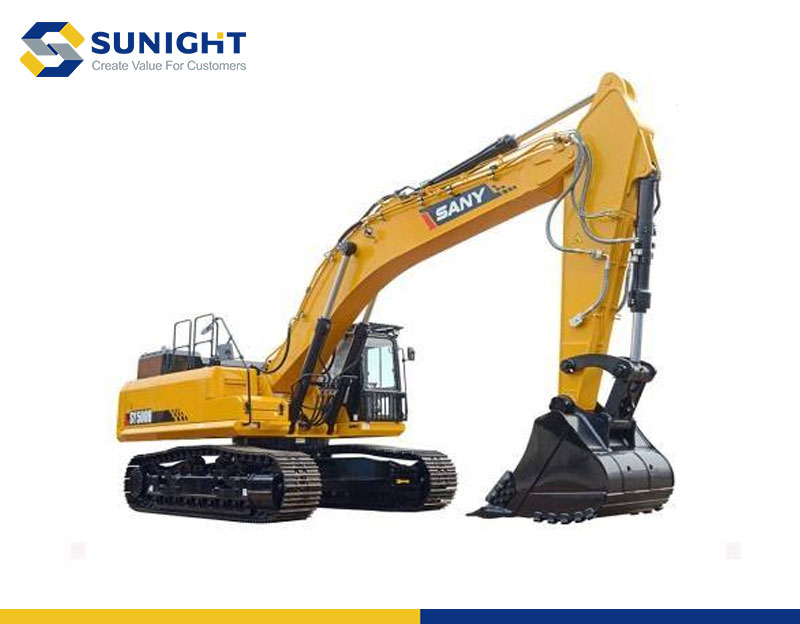

49.5 T Large Excavator SANY SY500H

Large Tonnage Crawler Excavator

More than 20 kinds of optional working deivices, good protection of the engine with multiple filtration system. Much more convenient maintenance operation, durable oil and filters to make longer maitenance period, 50% less expense.

● Brand Name: SANY

● Engine Model: 6WG1X

● Engine Power: 300 kW

● Bucket Load: 2.2 - 3.1 m³

● Operating Weight: 49.5 T

● Classification: Large Crawler Excavator

By comprehensive testing system, the designed lifetime reaches 25000 hours, 15% less pressure of key components compared with 40 tonnage models, but 30% longer lifetime.
Specifications Benefits & Features Video
Model SY500H
A transport length 12095mm
B transport width 3360mm
C transport height 3775mm
D Upperstructure width 3290mm
E Cab Height 3470mm
F Std. Track shoe width 600mm/1'11.6"
G track gauge 2740mm
H Min. Ground clearance 560mm
I Tail swing radius 3765mm
J Length to centers of rollers 4415mm
K track length 5440mm
Operation range
a Max. Digging height 10900mm
b Max. Dumping height 7580mm
c Max. Digging depth 7370mm
e Max. Digging reach 11740mm
f Min. Swing radius 5240mm
g Max. Height at min. Swing radius 9085mm
Technical parameters:
Operating weight 48600kg
Std. Bucket capacity 2.2m3
Rated power 300kw/2000rpm
Travel speed 5.4/3.1km/h
Swing speed 8.4rpm
Gradeability 35 70%
Ground press 87.1kPa
Bucket digging ability 254kN
Arm Digging Force 215kN

sany excavator

49.5 T Large Excavator SANY SY500H Highlights

  1. 1. Super power:
    Imported Isuzu engine. Rated power is up to 300kw.
  2. 2. Strong adaptability
    With fuel tank self-filtration system and fuel - level filter system, to ensure cleanliness of each drop fuel. In this way, the fuel adaptability is higher.
  3. 3. Control system with independent intellectual property
    Optimizing power matching, adaptability of high temperature, heavy load and highland. Less fuel consumption for same operation case.
  4. 4. Independent heat dissipation system
    Ensure the optimum temperature of hydraulic system under the condition of high temperature and heavy load.
  5. 5. Design for mine
    Ensure the reliability of key structure under heavy load condition. Main structures are all used finite element analysis, IIW International standard/AISC Japanese standard are adopted. Design is more reliable. Adopting comprehensive test and verification system for whole machine and every part, the reliable of machine is much higher.
Wating update

sany excavator

SANY excavator

SANY excavator

SANY excavator
