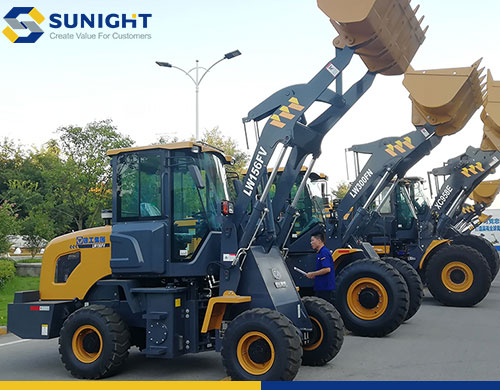

XCMG LW156FV
Mini Wheel Loader
XCMG mini wheel loader LW156FV has the characteristics of advance, reliability, energy-saving, high-efficiency, comfort, convenience and multifunction.
● Brand Name: XCMG
● Engine Model: YN27GBZ
● Net Power: 55kW
● Bucket Load: 0.7m³
● Rated Load: 1100 kg
● Classification: 1Ton Mini Wheel Loader
XCMG LW156FV Specifications PDF ↓
| Item | Short boom | Standard boom | Long boom | Units |
| Rated load | 1200 | 1100 | 1000 | kg |
| Tipping load | 2400 | 2200 | 2000 | kg |
| Standard | 3000 | 3300 | 3500 | mm |
| Unloading distance | 785 | 830 | 1070 | mm |
| Rated bucket capacity | 0.7 | m3 | ||
| Overall mass | 4450 | 4550 | 4650 | kg |
| Wheel base | 2300 | mm | ||
| Tread | 1500 | mm | ||
| Maximum hoisted hinge pin height | 3730 | 3920 | 4190 | mm |
| Maximum breakout force | 44 | kN | ||
| Maximum traction | 40 | |||
| Boom hoisting time | 5.5 | s | ||
| Three items and time | 9 | s | ||
| Minimum turning radius (tire center) | 4620 | mm | ||
| Articulation angle | 35 | ° | ||
| Climbing capacity | 25 | ° | ||
| Minimum ground clearance | 260 | mm | ||
| Tire specification | 16/70-16 | - | ||
| Overall dimensions (length*width*height) | 5890*2060*2900 | 6140*2060*2900 | 6390*2060*2900 | mm |
| Engine Model | YN27GBZ | |||
| Rated power/speed | 55/2400 | kW/rpm |
LW156FV mini wheel loader is a product independently researched and developed by XCMG. This wheel loader is equipped with national engine, high-quality split type double change, four-wheel drive, full hydraulic steering, strong power, higher efficiency and stronger environmental adaptability.
Product Highlights:
- 1. XCMG mini wheel loader LW156FV strong power, high efficiency and low fuel consumption.
- 2. 2300mm long wheelbase with stable loading.
- 3. Walking freely on narrow sites with a 35-degree steering angle.
- 4. XCMG LW156FV mini wheel loader stronger structure, stronger adaptability to heavy load.
- 5. Easy reach to gearbox refueling, grease filling, pressure measuring.
XCMG LW156FV Wheel Loader Detail
XCMG mini wheel loader LW156FV applicable working conditions:
Mini wheel loader LW156FV is suitable for small and narrow operation sites such as construction sites, ports, docks, stations, freight yards, grain yards, paper mills, biological power plants, municipal construction, and greening.
