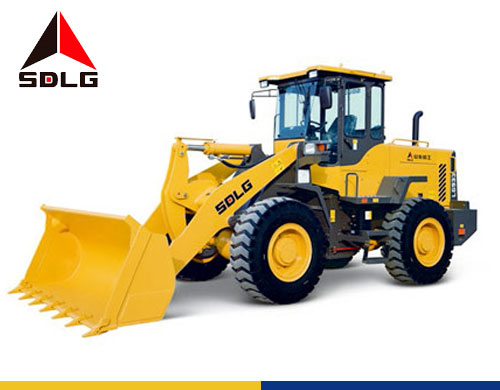

3Ton 1.8m³ Wheel Loader SDLG LG933L

Compact Shovel Wheel Loader

LG933L wheel loader is a suitable for bulk materials, with short base, high cost performance. The entire machine is of large breakout force, small turning radius, high operating efficiency, flexible to operate and is widely used in harbor, building site, aggregate plant, timber yard and etc.

● Brand Name: SDLG

● Engine Model:Weichai WP6G125E23

● Rated power 92 kW

● Bucket Capacity:1.8 m³

● Rated Load: 3000 kg

● Operating Weight: 10110 kg

● Classification: Compact Shovel Wheel Loader

Sdlg 3t LG933L 1.8m3 Bucket Front End Wheel Loader
Specifications Benefits & Features Video
Basic configuration
Engine  Weichai WP6G125E23
Transmission system Fixed shaft power shift, SDLG reinforced drive axle
Hydraulic system     Mechanical
Lift arm Standard
Control valve 2-joint valve
Brake system Dual brake pedal
Cab  Standard
Heating  & Cooling Heater
Other configuration Engine  tachometer
Detailed configuration
Overall dimension
L*W*H 6970*2520*3240mm
Wheel base 2700mm
Min. ground clearance 375mm
Max. dumping height 2950mm
Lifting height 3790mm
Dumping distance 1050mm
Dumping angle 45°
wheel tread 1865mm
steering angle 36°
horizontal crossing radius 5945mm
Min. turning radius 5120mm
Overall parameters
Backet capacity 1.8m3(1.5-3.0)
Rated load 3000kg
operating weight 10110kg
Max. tractive force 96kN
Max. breakout force 96kN
Tipping load 60kN
Engine
Model WP6G125E23
Type watercooled, four-stroke, Inline
Rated power 92kW
Rated speed 2300r/min
Engine displacement 6750ml
Max. torque 500N.m
Emission standard GB 20891-2007(China Phase II)
Min. fuel-consume ratio 215g/kw.h
Transmission system
Torgue converter single-stage three-element hydraulic torque converter
Transmission type Fixed shaft power shift
Gears Forward 4 reverse 2
Hydraulic system of working device
Type Mechanical control
total time 9.0s
Brake system
Service brake type Air over hydraulic disc type
Parking brake type Manual, caliper disc type
Steering system
Type Load sensing full hydraulic articulated steering
System pressure 14 Mpa
Fill capacity
Fuel 140L
Hydraulic oil 130L
Engine 14L
Transmission 45L
Drive axle Forward 18L+ reverse 18L
Braking system 4L

Product Highlights:

  • 1. LG933L wheel loader is equipped with the Yuchai turbocharged engine meeting the requirements of China II emission standard, with strong power and high reliability; Weichai DEUTZ Engine is alternative.
  • 2. The cooling system is designed with area-enlarged radiator, optimized inlet and outlet air channels to effectively decrease the temperature of water for engine and the temperature of oil for hydraulic system, which provides the entire machine with high cooling efficiency.
  • 3. Axis-fixed power shift transmission case and single-turbine three-element hydraulic torque converter are used, with compact structure and high reliability and are convenient for maintenance; SDLG reinforced drive axle is configured, with large bearing capacity and high reliability.
  • 4. Load-sensing full hydraulic steering system is used, with light and quick steering and reliable energy saving properties; Mechanically-operated working device hydraulic system is used, with high performance reliability and is easy to operate. It is equipped with hydraulic element of famous brand and high reliability.
  • 5. New steel structure cab is adopted, which ensures wide vision, a larger operation space,good sealing performance; The air conditioner can be installed optionally, which ensures good comfort.
  • 6. Electrical apparatus element is of high-end and mature system of SDLG, which makes it stable and reliable.
  • 7. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing capacity, reasonable entire-machine load distribution and good stability.
  • 8. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high coefficient of fullness and is reliable and high-efficient.
