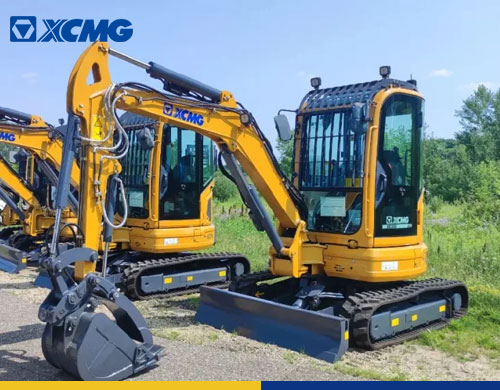

4Ton Crawler Excavator XCMG XE35U
Small/Mini Tonnage Crawler Excavator
XE35U hydraulic excavator cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, pinching, lifting, etc.
● Brand Name: XCMG
● Engine Model: 3TNV88-BPXG
● Bucket Load:0.11 m³
● Rated Load: 4200 kg
● Classification: Small/Mini Tonnage Crawler Excavator
| Model | Metric unit | XE35U | ||
| Operating weight | kg | 4200 | ||
| Bucket capacity | m3 | 0.11 | ||
| Engine | Model | 3TNV88-BPXG | ||
| Displacement Standard | Tier IIIA | |||
| Style | Direct injection | --- | √ | |
| Four strokes | --- | √ | ||
| Water cooling | --- | √ | ||
| No. of cylinders | --- | 3 | ||
| Output power | kW/ r/min | 21.6/2400 | ||
| torque/speed | N.m | 107.2/1444 | ||
| Displacement | L | 1.642 | ||
| Main performance | Travel speed(H/L) | km/h | 3.6/2.2 | |
| Gradeability | % | 58 | ||
| Rotating speed | r/min | 8.5 | ||
| Ground pressure | kPa | 36.6 | ||
| Bucket digging force | kN | 24.6 | ||
| Arm crowd force | kN | 17.8 | ||
| Appearance size | A | Overall length | mm | 4960 |
| B | Overall width | mm | 1740 | |
| C | Overall height | mm | 2535 | |
| D | Width of platform | mm | 1585 | |
| E | Length of crawler | mm | 2220 | |
| F | Overall width of chassis | mm | 1740 | |
| G | Width of crawler | mm | 300 | |
| H | Track length on ground | mm | 1440 | |
| I | Crawler gauge | mm | 1721 | |
| J | Clearance under counterweight | mm | 587 | |
| K | Min. ground clearance | mm | 297 | |
| L | Min. tail swing radius | mm | 870 | |
| Working scope | A | Max. digging height | mm | 5215 |
| B | Max. dumping height | mm | 3760 | |
| C | Max. digging depth | mm | 3060 | |
| D | Max. vertical wall digging depth | mm | 2260 | |
| E | Max. digging reach | mm | 5415 | |
| F | Min. swing radius | mm | 2170 | |
* More energy-conservation and environmental protection
By adopting Yanmar engine meeting national stage III emission standard, mechanical fuel injection pump has reliable performance. With compact size, the maintenance is convenient. Enough low torque reserve can ensure strong power. High reliability can reduce the maintenance cost.
* More efficient return
Rear-end swing radius adopts tailless design, which can ensure that the tail part will not collide with obstacles under narrow working conditions. Deflectable working device can deflect to left and right at 75° and 50° separately, which can achieve compound action with superstructure. Through swing cooperation with superstructure, digging operation parallel to the wall surface will be achieved and various kinds of working conditions can be coped with easily.
* More reliable and durable
Partial strengthen the parts with great stress on boom and arm, and meanwhile adjust the structure to disperse the stress, which makes the life longer. With standard configured new bucket, the depth of bucket is reduced and unloading material will be faster and easier.
