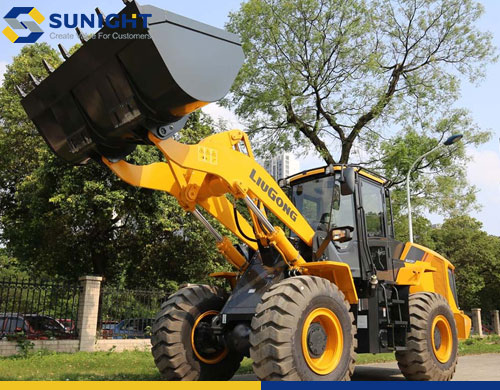

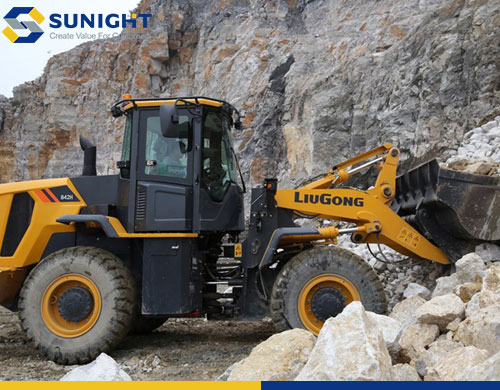

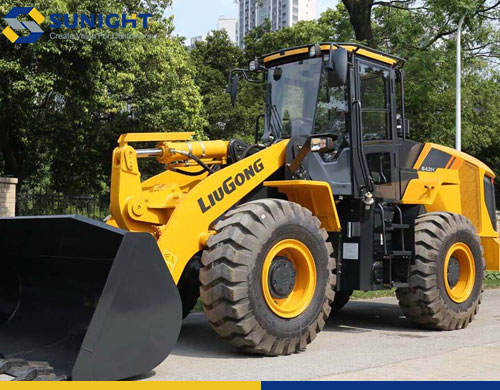

4Ton Wheel Loader LIUGONG CLG842H
Medium Wheel Loader
The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
● Brand Name: LIUGONG
● Engine Model: Cummins 6BTAA5.9-C170
● Net Power: 115 kW (154 hp / 156 ps) @ 2,200 rpm
● Bucket Capacity:2.5 m³
● Rated Load: 4,000 kg
● Operating Weight: 13,000 kg
● Classification: Medium Wheel Loader
Our curved, panoramic glass windows and optional rear-view camera combine to increase visibility by 15%.
Specifications
Benefits & Features
Video
Base
| Operating Weight | 13,000 kg |
| Bucket Capacity | 2.3 m³ |
| Gross Power | 125 kW (168 hp / 170 ps) @ 2,200 rpm |
| Net Power | 115 kW (154 hp / 156 ps) @ 2,200 rpm |
Performance
| Total Cycle Time | 9.0 s |
| Tipping Load-full Turn | 8,400 kg |
| Bucket Breakout Force | 124 kN |
| Dump Clearance, Full Height Discharge | 2,889 mm |
| Dump Reach, Full Height Discharge | 1,110 mm |
Engine
| Model | Cummins 6BTAA5.9-C170 |
| Emissions | EPA Tier 2 / EU Stage II |
Dimensions
| Length with Bucket Down | 7,573 mm |
| Width over Tires | 2,480 mm |
| Cab Height | 3,300 mm |
Product Highlights:
- The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
- 309° panoramic visibility gives the operator a very comfortable work environment in the cab.
- Fully-sealing and micro-pressuring system ensures the cab is clean and quiet.
- Single layer radiator and big range fin spacing for high efficiency and easy maintenance.
Waiting Update
Send Your Inquiry
To contact us please use the following form to submit your enquiry. We aim to contact you within one business day.
