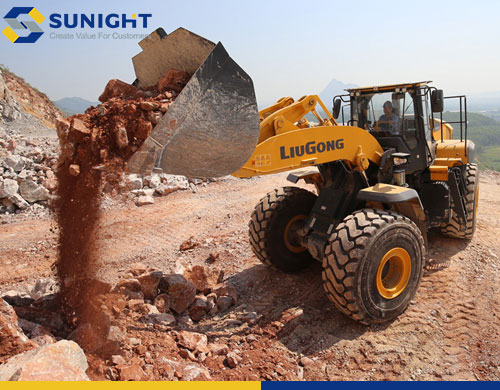

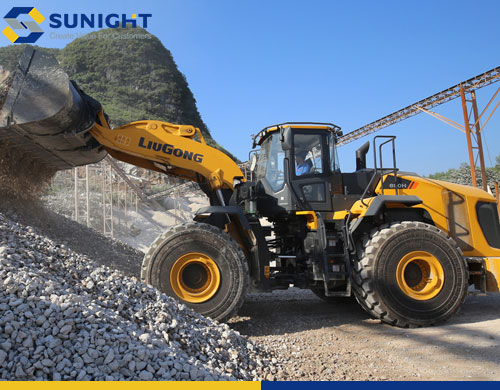

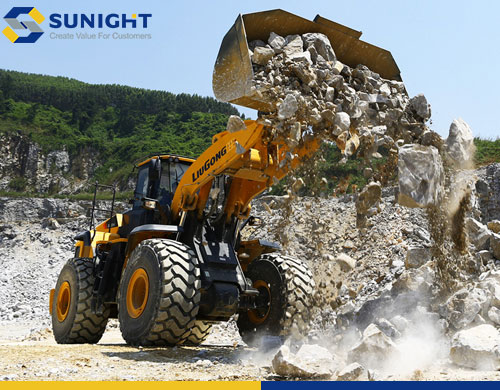

9Ton Wheel Loader LIUGONG CLG890H
Large Tonnage Wheel Loader
LIUGONG compact wheel loader 816C has the characteristics of advance, reliability, energy-saving, high-efficiency, comfort, convenience and multifunction.
● Brand Name: LIUGONG
● Engine Model: Cummins QSM11
● Engine Emissions: EPA Tier 2 / EU Stage II
● Net Power: 273 kW (366 hp / 371 ps) @ 1,800 rpm
● Bucket Capacity: 5.4 m³
● Rated Load: 9,000 kg
● Operating Weight: 30,600 kg
● Classification: Large Tonnage Wheel Loader
LIUGONG CLG890H Specifications PDF ↓
Base
| Operating Weight | 30,600 kg |
| Bucket Capacity | 5.4 m³ |
| Maximum Gross Power-SAE J1995 / ISO 14396 | 287 kW (385 hp / 390 ps) @ 1,800 rpm |
| Maximum Net Power-SAE J1349 / ISO 9249 | 273 kW (366 hp / 371 ps) @ 1,800 rpm |
| Rated Load | 9,000 kg |
Performance
| Total Cycle Time | 11 s |
| Tipping Load-full Turn | 20,600 kg |
| Bucket Breakout Force | 236 kN |
| Dump Clearance, Full Height Discharge | 3,330 mm |
| Dump Reach, Full Height Discharge | 1,479 mm |
Engine
| Model | Cummins QSM11 |
| Emissions | EPA Tier 2 / EU Stage II |
Dimensions
| Length with Bucket Down | 9,450 mm |
| Width over Tires | 3,170 mm |
| Cab Height | 3,765 mm |
Product Highlights:

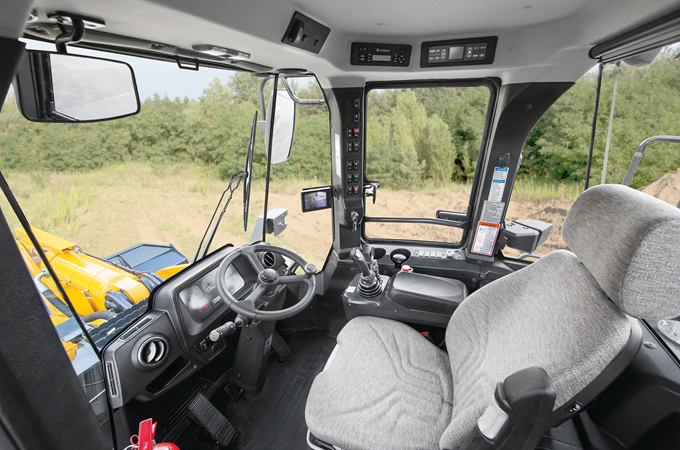

FINGER-TIP CONTROL
We want you to work smarter, not harder which is why we’ve made it easy to get the job done right in the 890H. We’ve positioned the kickdown and forward/reverse buttons on the joystick to give the operator fingertip control to lower the gears, increase engine torque and maximise the bucket breakout force with the minimum effort.

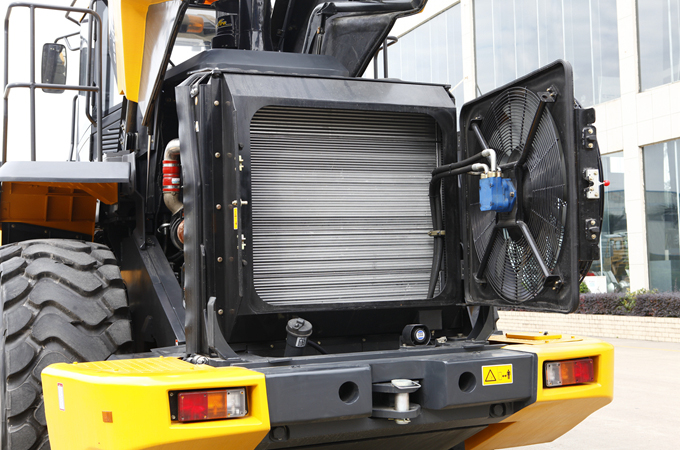

INTELLIGENT COOLING FOR GREATER ECONOMY
The 890H comes complete with a smart, reversible hydraulic fan which maintains the optimum cooling speed to match the working conditions. This variable speed technology is a smart way to reduce fuel consumption. In addition, the clever design makes it easy to remove dirt and contaminants reducing maintenance and downtime.
RELIABILITY YOU CAN TRUST
In tough conditions you need to have confidence in the reliability and durability of your machine. Our heavy-duty wet type brake axel and braking system won’t let you down. No matter how tough the terrain, our proven axel and braking technology is there to give operators the extra confidence to get the job done.
LIUGONG Wheel Loader Models
