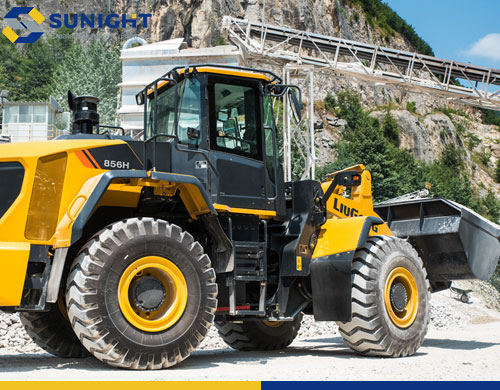

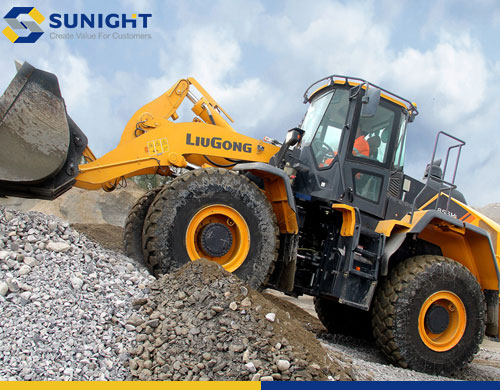

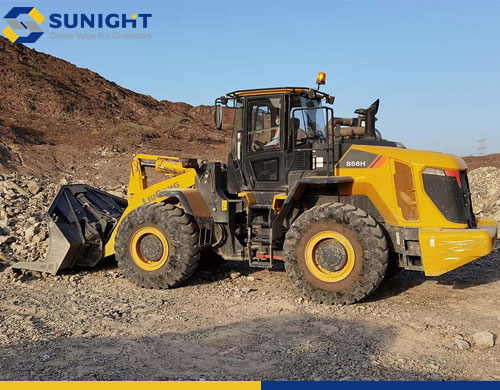

5Ton Wheel Loader LIUGONG CLG856H
Medium Wheel Loader
Designed for tough, demanding applications the LiuGong 856H is packed with benefits to make your life easier.
● Brand Name: LIUGONG
● Engine Model: Cummins 6LTAA9.3
● Net Power: 149 kW (200 hp / 202 ps) @ 2,200 rpm
● Bucket Capacity: 3 m³
● Rated Load: 5,000 kg
● Operating Weight: 17000 kg
● Classification: Medium Wheel Loader
Base
| Operating Weight | 17,000 kg |
| Bucket Capacity | 3.0 m³ |
| Gross Power | 162 kW (217 hp / 220 ps) @ 2,200 rpm |
| Net Power | 149 kW (200 hp / 202 ps) @ 2,200 rpm |
Performance
| Total Cycle Time | 10 s |
| Tipping Load-full Turn | 10,800 kg |
| Bucket Breakout Force | 172 kN |
| Dump Clearance, Full Height Discharge | 3,100 mm |
| Dump Reach, Full Height Discharge | 1,126 mm |
Engine
| Model | Cummins 6LTAA9.3 |
| Emissions | EPA Tier 2 / EU Stage II |
Dimensions
| Length with Bucket Down | 8,357 mm |
| Width over Tires | 2,750 mm |
| Cab Height | 3,450 mm |
Product Highlights:
UNBEATABLE PRODUCTIVITY AND FUEL ECONOMY
We’ve matched LiuGong’s intelligent powertrain technology with the latest Cummins engine to deliver consistently higher breakout force at lower engine speeds. Our smart technologies make it easy for you to enjoy maximum torque output with minimum fuel consumption.
ONE MACHINE – MULTIPLE APPLICATIONS

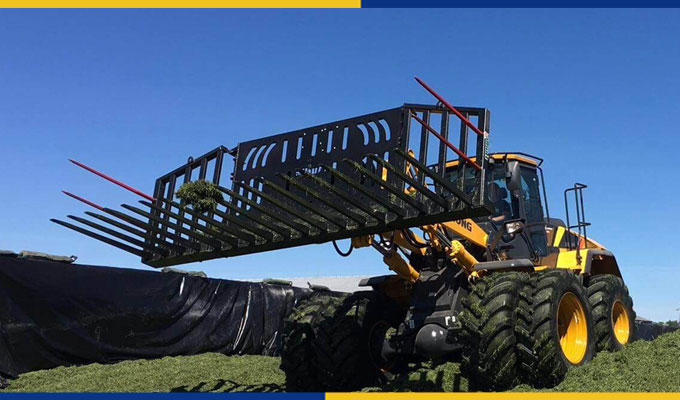

Getting more productivity from your 856H has never been easier with LiuGong’s quick coupler and comprehensive range of attachments. From large capacity buckets to forks and grapples, we give you the ultimate in jobsite versatility allowing you to do more – in less time.
EASY ACCESS MAINTENANCE
We believe that important daily checks and maintenance should be as simple as possible that’s why we’ve designed the 856H to make it easy for you. A wide opening engine hood gives you fast and easy access to the machine’s service points reducing your downtime and increasing productivity.
LIUGONG Wheel Loader Models
