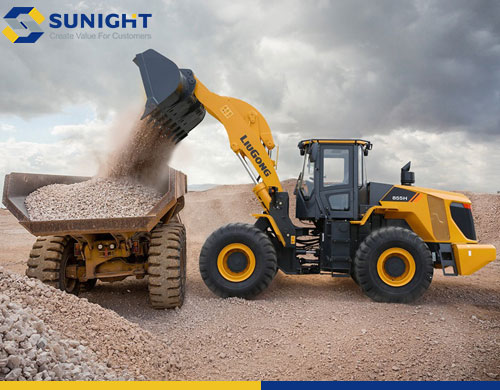

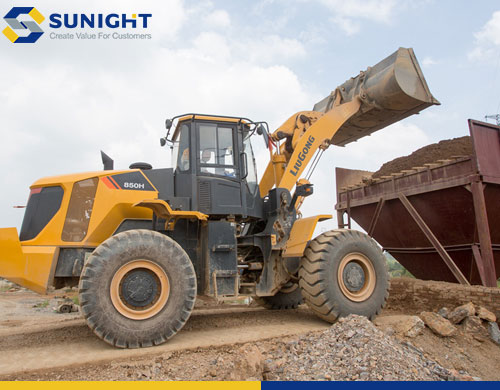

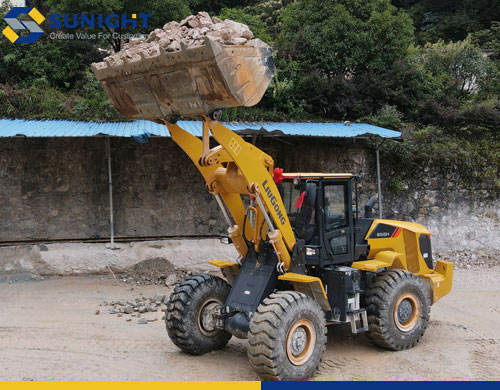

5Ton Wheel Loader LIUGONG CLG855H
Medium Wheel Loader
When you need a machine that just keeps on working, the 855H is in a class of its own.
● Brand Name: LIUGONG
● Engine Model: Cummins 6LTAA9.3
● Net Power: 149 kW (200 hp / 202 ps) @ 2,200 rpm
● Bucket Capacity: 3 m³
● Rated Load: 5,000 kg
● Operating Weight: 16700 kg
● Classification: Medium Wheel Loader
Base
| Operating Weight | 16,700 kg |
| Bucket Capacity | 3.0 m³ |
| Gross Power | 162 kW (217 hp / 220 ps) @ 2,000 rpm |
| Net Power | 149 kW (200 hp / 202 ps) @ 2,000 rpm |
Performance
| Total Cycle Time | 10.3 s |
| Tipping Load-full Turn | 11,100 kg |
| Bucket Breakout Force | 165 kN |
| Dump Clearance, Full Height Discharge | 3,056 mm |
| Dump Reach, Full Height Discharge | 1,149 mm |
Engine
| Model | Cummins 6LT9.3 |
| Emissions | EPA Tier 2 / EU Stage II |
Dimensions
| Length with Bucket Down | 8,066 mm |
| Width over Tires | 2,750 mm |
| Cab Height | 3,500 mm |
Product Highlights:
THE HIGHEST STANDARD FOR VISIBILITY, SAFETY, AND COMFORT
With panoramic visibility delivered through surround windows, a curved glass screen and large rear-view mirrors, it’s easy to do a great job and avoid accidents in the 855H. The cab offers a safe quiet working place for the operator with the added comfort of a multi-adjustable, higher capacity seat.
RELIABILITY BUILT IN

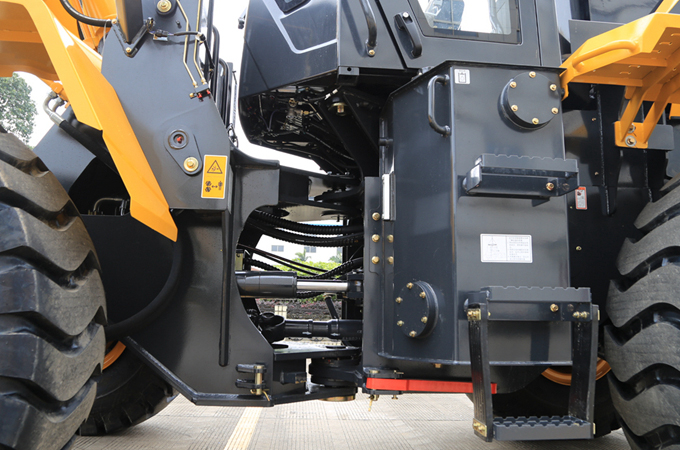

The 855H has been designed for maximum uptime. Benefitting from a newly improved LiuGong planetary power shift transmission, the 855H can put in over 6,000 hours of tough work before an overhaul is required. In addition, tapered roller bearings improve weight distribution over a wider surface area prolonging bearing life and durability.

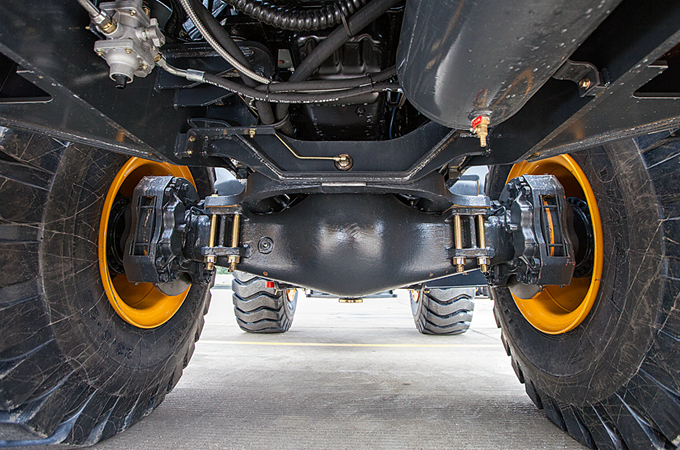

EASY MAINTENANCE AXLES
Maintaining axles and disc brakes doesn’t have to be a time-consuming task. Our smart dry axel design positions the disc block on the outside of the rim – so now you can carry out maintenance or change the disc block without removing the tire.
LIUGONG Wheel Loader Models
