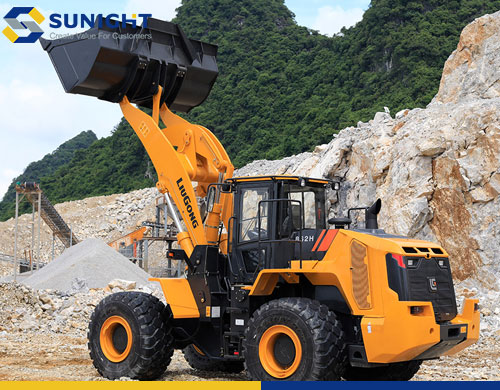

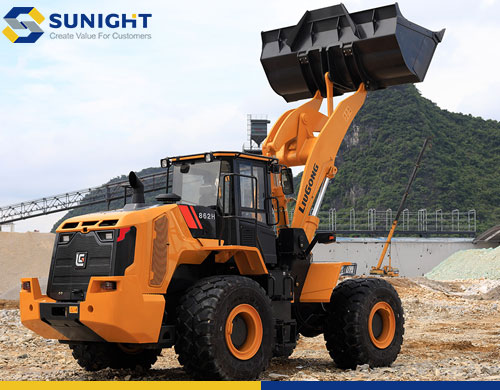

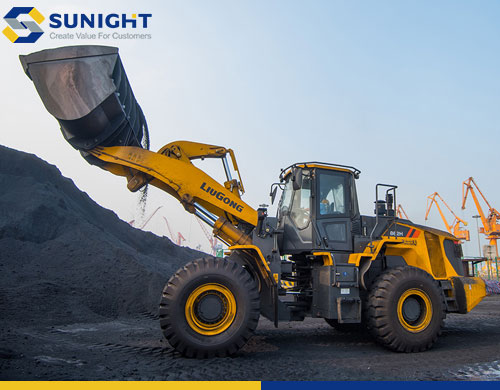

6Ton Wheel Loader LIUGONG CLG862H
Medium Wheel Loader
The 862H wheel loader prioritises productivity and fuel economy, while also maintaining the highest standard for operator comfort.
● Brand Name: LIUGONG
● Engine Model: Cummins 6LTAA8.9
● Net Power: 168 kW (225 hp / 228 ps) @ 2,200 rpm
● Bucket Capacity: 4 m³
● Rated Load: 6000 kg
● Operating Weight: 20,000 kg
● Classification: Medium Wheel Loader
Base
| Operating Weight | 20,000 kg |
| Bucket Capacity | 4 m³ |
| Gross Power | 179 kW (240 hp / 243 ps) @ 2,200 rpm |
| Net Power | 168 kW (225 hp / 228 ps) @ 2,200 rpm |
Performance
| Total Cycle Time | 9.3 s |
| Tipping Load-full Turn | 14,200 kg |
| Bucket Breakout Force | 180 kN |
| Dump Clearance, Full Height Discharge | 3,402 mm |
| Dump Reach, Full Height Discharge | 1,052 mm |
Engine
| Model | Cummins 6LTAA8.9 |
| Emissions | EPA Tier 2 / EU Stage II |
Dimensions
| Length with Bucket Down | 8,740 mm |
| Width over Tires | 2,980 mm |
| Cab Height | 3,550 mm |
Product Highlights:
- The engine is perfectly matched to the transmission chain and hydraulic system, for more efficiency and less wastage.
- The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
- A/C with big cooling capacity, adding air from back and bottom of machine for all-round effect.
- Single layer radiator and big range fin spacing for high efficiency and easy maintenance.
EASY MAINTENANCE
The single layer radiator with its big range fin spacing is designed with high efficiency and ease of maintenance in mind.
ENERGY SAVER
Improve productivity and reduce wastage with the latest Cummins engine that is perfectly matched to the transmission chain and hydraulic system. Further reduce energy loss with the hydraulic system’s dual-pump confluence with steering always in priority.
