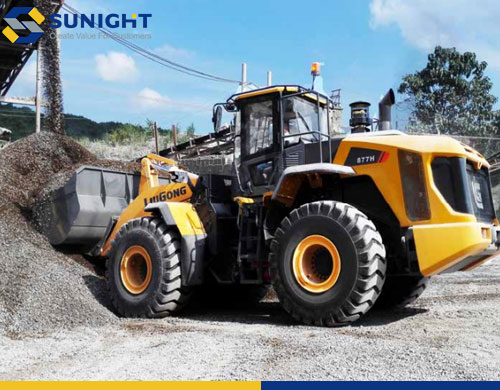

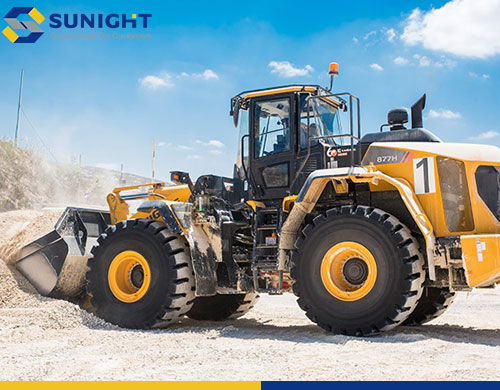

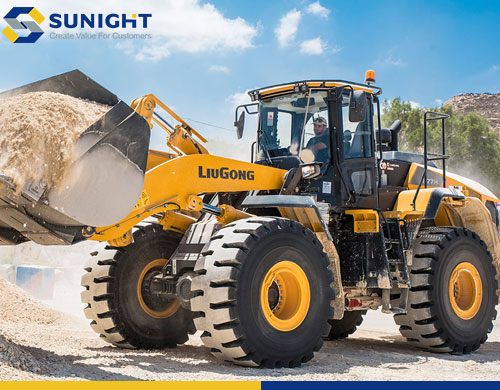

7Ton Wheel Loader LIUGONG CLG877H
Large Tonnage Wheel Loader
The 877H wheel loader is reliable and durable in the toughest of working conditions while maintaining the highest standard for operator comfort.
● Brand Name: LIUGONG
● Engine Model: Cummins 6LTAA8.9
● Net Power: 210 kW (281 hp / 285 ps) @ 1,600 rpm
● Bucket Capacity: 4.2 m³
● Rated Load: 7000 kg
● Operating Weight: 23,950 kg
● Classification: Large Tonnage Wheel Loader
Base
| Operating Weight | 23,950 kg |
| Bucket Capacity | 4.2 m³ |
| Maximum Gross Power-SAE J1995 / ISO 14396 | 220 kW (295 hp / 299 ps) @ 1,600 rpm |
| Maximum Net Power-SAE J1349 / ISO 9249 | 210 kW (281 hp / 285 ps) @ 1,600 rpm |
Performance
| Total Cycle Time | 10.3 s |
| Tipping Load-full Turn | 16,020 kg |
| Bucket Breakout Force | 200 kN |
| Dump Clearance, Full Height Discharge | 3,150 mm |
| Dump Reach, Full Height Discharge | 1,312 mm |
Engine
| Model | Cummins 6LTAA8.9 |
| Emissions | EPA Tier 2 / EU Stage II |
Dimensions
| Length with Bucket Down | 9,100 mm |
| Width over Tires | 2,970 mm |
| Cab Height | 3,580 mm |
Product Highlights:
INCREASED BREAKOUT FORCE
The 877H is designed to deliver a higher breakout force. Z-bar linkage with large transmission ratio uses high-pressure hydraulics to achieve this.
HEAVY DUTY ACTION
This wheel loader is reliable and durable under even the toughest work conditions, ensured by a heavy-duty wet-type brake axle and braking system.
OPERATE IN COMFORT
Operators will enjoy a clean and quiet operator space, in a fully sealing and micro-pressuring cab that effectively shuts out dust. Ride comfort is improved by silicone oil shock absorbers to reduce vibration. The improved ergonomics cab design with all control switches in easy reach reduces operator fatigue.
LIUGONG Wheel Loader Models
